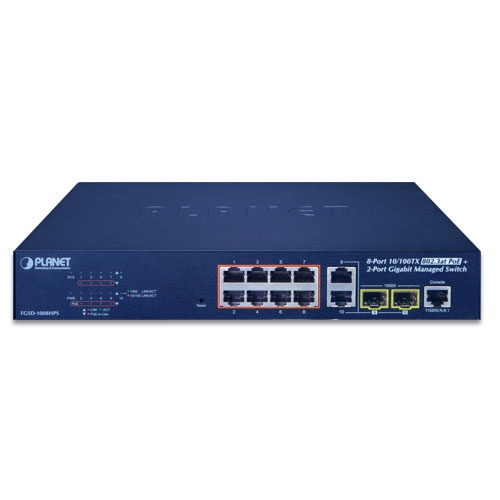

FGSD-1008HPS - 8-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP
Hardware Specifications | |
---|---|
Copper Ports | 8 10/100BASE-TX RJ45 Auto-MDI/MDI-X ports |
PoE Injector Port | 8 802.3af/802.3at PoE+ injector ports |
Gigabit Copper Ports | 2 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
SFP/mini-GBIC Slots | 2 100/1000BASE-X SFP interfaces, shared with Port-9 to Port-10 |
Console | 1 RS232-to-RJ45 serial port (115200, N, 8, 1) |
Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
LED | System: Power (Green) SYS (Green) 10/100TX RJ45 Interfaces (Port 1 to Port 8): LNK/ACT (Green), PoE-in-Use (Amber) 10/100/1000BASE-T RJ45 / SFP Interfaces (Port 9 to Port 10): LNK/ACT 10/100 (Amber), 1000 (Green) |
Thermal Fan | 1 |
Power Requirements | 100~240V AC, 50/60Hz, 2.5A (max.) |
Power Consumption/Dissipation | Max.121watts/413BTU |
Dimensions (W x D x H) | 280 x 180 x 44 mm |
Weight | 1503g |
Enclosure | Metal |
Switching | |
Switch Architecture | Store-and-Forward |
Switch Fabric | 5.5Gbps/non-blocking |
Switch Throughput@64bytes | 4.17Mpps @64bytes |
MAC Address Table | 16K entries |
Shared Data Buffer | 4Mbits |
Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
Jumbo Frame | 16K bytes |
Power over Ethernet | |
PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
PoE Power Supply Type | End-span |
Power Pin Assignment | 1/2(+), 3/6 (-) |
PoE Power Output | Per Port 53V DC, 300mA. Max. 15.4 watts (IEEE 802.3af) Per Port 53V DC, 600mA. Max. 30 watts (IEEE 802.3at) |
PoE Power Budget | 120 watts |
Number of PDs, 7 watts | 8 |
Number of PDs, 15.4 watts | 7 |
Number of PDs, 30 watts | 4 |
Layer 2 Functions | |
Port Mirroring | TX/RX/both Many-to-1 monitor |
VLAN | Port-based VLAN, up to 10 VLAN groups IEEE 802.1Q tagged VLAN - Up to 256 VLAN groups, out of 4094 VLAN IDs Protocol VLAN Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad) GVRP Voice VLAN |
Link Aggregation | IEEE 802.3ad LACP supports one 2-port trunk group; static trunk supports one 2-port trunk group |
Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU filtering, BPDU Guard |
IGMP Snooping | IPv4 IGMP snooping v1/ v2 and v3 |
MLD Snooping | IPv6 MLD snooping v1, v2 |
QoS | Ingress/Egress Rate Limit per port bandwidth control Storm Control support - Broadcast/ Multicast/DLF (Destination Lookup Failure)/ARP/ICMP Traffic classification - IEEE 802.1p Qos/CoS - TCP/UDP/DSCP/IP precedence of IPv4/IPv6 packets Strict priority and Weighted Round Robin (WRR) CoS policies |
Security Functions | |
Access Control List | IPv4/IPv6 IP-based ACL MAC-based ACL |
MAC Security | Port-MAC-IP Address Binding - Port-MAC-IP Port Setting - Port-MAC-IP Entry Setting MAC Address Binding - Static MAC - MAC Filtering |
Enhanced Security | DHCP snooping to filter distrusted DHCP messages ARP Inspection discards ARP packets with invalid MAC address to IP address binding |
Management Functions | |
System Configuration | Console and Telnet command line interface Web browser SNMP v1, v2c |
Secure Management Interfaces | SNMP v3, SSH v2, TLS v1.2 |
System Management | IPv4 and IPv6 dual stack management BOOTP and DHCP for IP address assignment System maintenance - Firmware upgrade via HTTP - Configuration upload/download through web interface - Hardware-based reset button for system reset to factory default SNTP Network Time Protocol Link Layer Discovery Protocol (LLDP) PLANET smart discovery utility |
Event Management | Event message logging to remote Syslog server |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 |
Environment | |
Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 10 ~ 90% (non-condensing) |
Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
