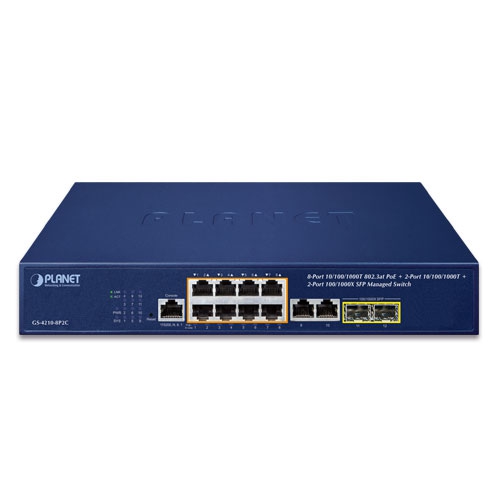

GS-4210-8P2C - 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T+ 2-Port 100/1000X SFP
Hardware Specifications | |
---|---|
Copper Ports | 10 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports |
SFP Ports | 2 x 100/1000BASE-X SFP interfaces Supports 100/1000Mbps dual mode and DDM |
PoE Injector Port | 8 ports with 802.3at/af PoE injector function with Port-1 to Port-8 |
Console | 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1) |
Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
Dimensions (W x D x H) | 280 x 180 x 44 mm, 1U height |
Weight | 1.7kg |
Enclosure | Metal |
Power Requirements | AC 100~240V, 50/60Hz, 4A, auto-sensing |
Power Consumption/ Dissipation | 154 watts (max.)/525BTU |
ESD Protection | Contact Discharge 6KV DC Air Discharge 8KV DC |
Fan | 1 fixed speed Fan |
LED | System: PWR (Green) SYS (Green) Per 10/100/1000T RJ45Ports Port (Port 1 to Port 10): LNK (Green), ACT (Blinks) Per PoE Port (Port 1 to Port 8): PoE-in-use (Amber) Per Gigabit SFP Port (Port 11 to Port 12): LNK (Green), ACT (Blinks) |
Switching Specifications | |
Switch Architecture | Store-and-Forward |
Switch Fabric | 24Gbps/non-blocking |
Switch Throughput@64Bytes | 17.85Mpps |
Address Table | 8K entries |
Shared Data Buffer | 4.1 megabits |
Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
Jumbo Frame | 10K bytes |
Power over Ethernet | |
PoE Standard | IEEE 802.3af/802.3at PoE / PSE |
PoE Power Supply Type | End-span |
PoE Power Output | Per Port 54V DC, 32 watts (max.) |
Power Pin Assignment | End-span: 1/2 (+), 3/6 (-) |
PoE Power Budget | 120 watts (max.) |
Number of 802.3af PDs | 7 units |
Number of 802.3at PDs | 4 units |
PoE Management | PD Alive Check Scheduled Power Recycling PoE Schedule PoE Usage Monitoring PoE Extension |
Layer 2 Functions | |
Port Mirroring | TX/RX/both Many-to-1 monitor Up to 4 sessions |
VLAN | IEEE 802.1Q tagged-based VLAN IEEE 802.1ad Q-in-Q tunneling Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Up to 256 VLAN groups, out of 4094 VLAN IDs |
Link Aggregation | IEEE 802.3ad LACP/Static Trunk Supports 2 trunk groups with 4 ports per trunk |
Spanning Tree Protocol | STP, IEEE 802.1D Spanning Tree Protocol RSTP, IEEE 802.1w Rapid Spanning Tree Protocol MSTP, IEEE 802.1s Multiple Spanning Tree Protocol STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
IGMP Snooping | IPv4 IGMP (v2/v3) Snooping IPv4 IGMP Querier Up to 256 multicast groups |
MLD Snooping | IPv6 MLD (v1/v2) Snooping Up to 256 multicast groups |
QoS | 8 mapping ID to 8 level priority queues Port number 802.1p priority 802.1Q VLAN tag DSCP field in IP packet Traffic classification based, strict priority and WRR |
Ring | Supports ERPS, and complies with ITU-T G.8032 |
Security Functions | |
Access Control List | IPv4/IPv6 IP-based ACL MAC-based ACL |
Security | IP-MAC port binding MAC filter Static MAC address DHCP Snooping and DHCP Option82 DoS attack prevention ARP inspection IP source guard |
AAA | Built-in RADIUS client to co-operate with RADIUS server |
Network Access Control | IEEE 802.1X – Port-based authentication RADIUS/TACACS+ user access authentication |
Management Functions | |
Basic Management Interfaces | RS232 Console Web browser Telnet SNMP v1, v2c |
Secure Management Interfaces | SSHv2, TLS v1.2, SNMPv3 |
System Management | Firmware upgrade by HTTP/TFTP protocol through Ethernet network LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System PLANET CloudViewer app |
Event Management | Remote/Local Syslog System log |
SNMP MIBs | RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB RFC 3621 Power Ethernet MIB |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree protocol IEEE 802.1w Rapid Spanning Tree protocol IEEE 802.1s Multiple Spanning Tree protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 ITU G.8032 ERPS Ring |
Environment | |
Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
Storage | Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
