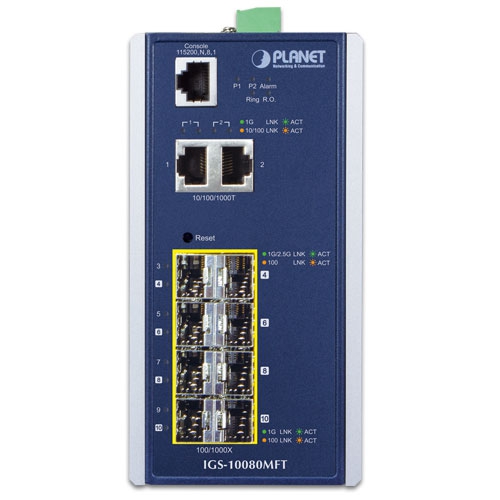

IGS-10080MFT - Industrial 6-Port 100/1000X SFP + 2-Port 1G/2.5G SFP + 2-Port 10/100/1000T
Hardware Specifications | |
---|---|
Copper Ports | 2 10/100/1000BASE-T Ethernet interfaces (Ports 1 to 2) |
SFP/mini-GBIC Slots | 2 100/1000/2500BASE-X mini-GBIC SFP ports (Ports 3 to 4) 6 100/1000BASE-X mini-GBIC SFP ports (Ports 5 to 10) |
SDRAM | 128Mbytes |
Flash Memory | 64Mbytes |
Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
ESD Protection | 6KV DC |
EFT Protection | 6KV DC |
Enclosure | IP30 aluminum metal cas |
Installation | DIN rail kit and wall-mount |
Dimensions (W x D x H) | 76.8 x 107.3 x 152 mm |
Weight | 1036g |
Power Requirements | DC 12 to 48V, AC 24V Power Adapter |
Power Consumption | 13.92 Watts/47.76BTU (Full loading) |
LED Indicator | System: Power 1 (Green) Power 2 (Green) Alarm (Red) Ring (Green) R.0. (Green) Per 10/100/1000T RJ45 Ports (Port 1 to port 2): 10/100 LNK/ACT (Amber) 1000 LNK/ACT (Green) Per 100/1000/2500BASE-X SFP Interface (Port 3 to port 4): 100 LNK/ACT (Amber) 1G/2.5G LNK/ACT (Green) Per 100/1000BASE-X SFP Interface (Port 5 to port 10): 100 LNK/ACT (Amber) 1000 LNK/ACT (Green) |
Switching Specifications | |
Switch Architecture | Store-and-Forward |
Switch Fabric | 26Gbps/non-blocking |
Throughput | 19.34Mpps@ 64 bytes packet |
Address Table | 8K entries, automatic source address learning and aging |
Shared Data Buffer | 512 Kbytes |
Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
Jumbo Frame | 9K bytes |
Layer 2 Management Functions | |
Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Power saving mode control |
Port Status | Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
Port Mirroring | TX/RX/both 1 to 1 monitor |
VLAN | 802.1Q tag-based VLAN, up to 4K VLAN groups Q-in-Q tunneling Private VLAN Edge MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) GVRP Up to 4K VLAN groups, out of 4094 VLAN IDs |
Link Aggregation | IEEE 802.3ad LACP/static trunk |
Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) |
IGMP Snooping | IGMP (v1/v2/v3) snooping IGMP querier mode support Up to 255 multicast groups |
MLD Snooping | MLD (v1/v2) snooping MLD querier mode support Up to 255 multicast groups |
Bandwidth Control | Per port bandwidth control Ingress: 500Kb~1000Mbps Egress: 500Kb~1000Mbps |
Ring | Supports ERPS, and complies with ITU-T G.8032 Supports Major ring and sub-ring Recovery time < 10ms @ 3 units Recovery time < 50ms @ 16 units |
Synchronization | IEEE 1588v2 PTP (Precision Time Protocol) - Peer-to-peer transparent clock - End-to-end transparent clock |
QoS | Traffic classification based, strict priority and WRR 8-level priority for switching - Port number - 802.1p priority - 802.1Q VLAN tag |
Security Functions | |
Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE Up to 256 entries |
Port Security | IEEE 802.1X – Port-based authentication Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication |
MAC Security | IP-MAC port binding MAC filter Static MAC address |
Enhanced Security | DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard |
Layer 3 Functions | |
IP Interfaces | Max. 8 VLAN interfaces |
Routing Table | Max. 32 routing entries |
Routing Protocols | IPv4 software static routing IPv6 software static routing |
Management | |
Basic Management Interfaces | Telnet/Web browser/SNMP v1, v2c |
Secure Management Interfaces | SSHv2, TLS v1.2, SNMP v3 |
System Management | Firmware upgrade by HTTP/TFTP protocol through Ethernet network LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System/CloudViewer |
Event Management | Remote/Local Syslog System log |
Industrial Protocol | Modbus TCP for real-time monitoring in SCADA system |
SNMP MIBs | RFC 1213 MIB-II IF-MIB RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3ab Gigabit 1000T IEEE 802.3z Gigabit SX/LX IEEE 802.3bz 2.5GBASE-X IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP ITU-T G.8032 Ethernet Ring Protection Switching RFC 768 UDP RFC 783 TFTP RFC 793 TCP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 |
Environment | |
Operating Temperature | -40 ~ 75 degrees C |
Storage Temperature | -40 ~ 75 degrees C |
Humidity | 5 ~ 95% (non-condensing) |
