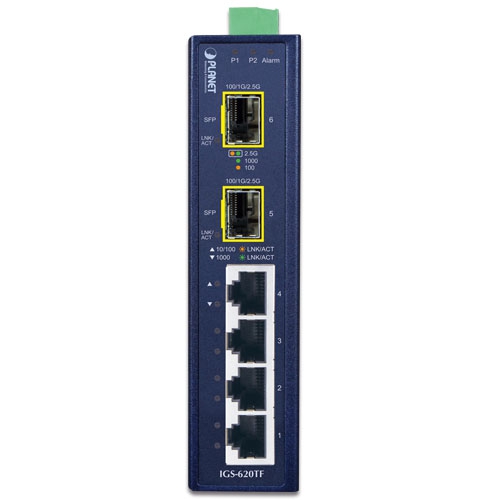

IGS-620TF - Industrial 4-Port 10/100/1000BASE-T + 2-Port 100/1G/2.5GBASE-X SFP
Hardware Specifications | |||||||||
---|---|---|---|---|---|---|---|---|---|
Copper Ports | 4 x 10/100/1000BASE-T RJ45 TP Auto-MDI/MDI-X, auto-negotiation |
||||||||
SFP Slots | 2 x 100/1G/2.5GBASE-X SFP interfaces Supports auto detection |
||||||||
DIP Switch |
|
||||||||
Connector | Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power |
||||||||
Alarm | Provides one relay output for power failure Alarm Relay current carry ability: 1A @ DC 24V |
||||||||
ESD Protection | 6KV DC | ||||||||
Enclosure | IP30 type metal case | ||||||||
Installation | DIN-rail kit and wall-mount ear | ||||||||
Dimensions (W x D x H) | 32 x 87 x 135mm | ||||||||
Weight | 425g | ||||||||
Power Requirements | DC 12~48V or AC 24V Redundant power with reverse polarity protection |
||||||||
Power Consumption / Dissipation | 7.5watts / 26BTU | ||||||||
LED | 3 x LED for System and Power: ■ Green: DC Power 1 ■ Green: DC Power 2 ■ Red: Alarm 2 x LED for Per Copper Port (Port-1~Port-4): ■ Green: 1G LNK/ACT ■ Amber:100 LNK/ACT 1 x LED for Per SFP interface (Port-5 and Port-6) ■ Green + Amber: 2.5G LNK/ACT ■ Green: 1G LNK/ACT ■ Amber:100 LNK/ACT |
||||||||
Switch Specifications | |||||||||
Switch Processing Scheme | Store-and-Forward | ||||||||
Switch Fabric | 18Gbps | ||||||||
Throughput (packet per second) | 13.39Mpps@64bytes | ||||||||
Address Table | 4K entries | ||||||||
Jumbo Frame | 9216 bytes | ||||||||
Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
||||||||
Standards Conformance | |||||||||
Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.1p Class of Service |
||||||||
Regulatory Compliance | FCC Part 15 Class A, CE | ||||||||
Stability Testing | IEC60068-2-32(Free fall) IEC60068-2-27(Shock) IEC60068-2-6(Vibration) |
||||||||
Environment | |||||||||
Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
||||||||
Humidity | Operating: 5~95% (Non-condensing) Storage: 5~95% (Non-condensing) |
