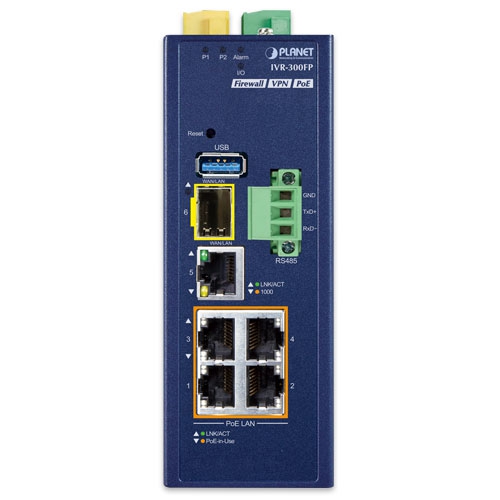

IVR-300FP - Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T + 1-Port 1000X SFP VPN Security Gateway
Hardware Specifications | |
---|---|
Copper Ports | 5 10/100/1000BASE-T RJ45 Ethernet ports including 4 LAN ports (Ports 1 to 4) 1 WAN/LAN port (Port 5) |
Fiber Port | 1 1000BASE-X SFP slot including 1 WAN/LAN port (Port 6) |
Serial Interface | 1 x 3-pin terminal block for RS485 |
USB Port | 1 USB 3.0 port |
DI & DO Interfaces | 2 Digital Input (DI): Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input Load to 24V DC, 10mA max. 2 Digital Output (DO): Open collector to 24V DC, 100mA max. |
Connector | Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 |
Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
Enclosure | IP30 metal case |
Installation | DIN-rail, wall-mounting |
LED Indicators | System: P1 (Green) P2 (Green) Alarm (Red) I/O (Red) Per 10/100/1000 RJ45 Ports (Ports 1-4): LNK/ACT (Green) PoE-in-Use (Amber) Per 10/100/1000 RJ45 Ports (Ports 5): LNK/ACT (Green) 1000 LNK (Amber) Per 1000BASE-X SFP Interfaces (Port 6): LNK/ACT (Green) |
Dimensions (W x D x H) | 50 x 135 x 135 mm |
Weight | 765g |
Power Requirements – DC | 48~54V DC, 3A |
Power Consumption | Max. 7.56 watts/25.8 BTU (No Loading) Max. 127 watts/433.34 BTU (Full loading) |
Power over Ethrenet | |
PoE Standard | IEEE 802.3af / 802.3at PoE+ PSE |
PoE Power Supply Type | End-span |
PoE Power Output | Per port 54V DC, 35 watts (max.) |
Power Pin Assignment | 1/2 (+), 3/6 (-) |
PoE Power Budget | 120 watts (max.) |
Max. Number of Class 4 PDs | 4 |
PoE Management | PD Alive Check Scheduled Power Recycling PoE Schedule PoE Usage Monitoring |
Advanced Functions | |
VPN | IPSec/Remote Server (Net-to-Net, Host-to-Net) GRE PPTP Server L2TP Server SSL Server/Client (Open VPN) |
VPN Tunnels | Max. 60 |
VPN Throughput | Max. 108Mbps |
Encryption Methods | DES, 3DES, AES or AES-128/192/256 encrypting |
Authentication Methods | MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm |
Management | |
Basic Management Interfaces | Web browser SNMP v1, v2c PLANET Smart Discovery utility and NMS controller supported |
Secure Management Interfaces | TLSv1.2, SNMP v3 |
System Log | System Event Log |
Others | Setup wizard Dashboard System status/service Statistics Connection status Auto reboot Diagnostics |
Standards Conformance | |
Regulatory Compliance | CE, FCC |
Environment | |
Operating | Temperature: -40 ~ 75 degrees C Relative humidity: 5 ~ 90% (non-condensing) |
Storage | Temperature: -40 ~ 85 degrees C Relative humidity: 5 ~ 90% (non-condensing) |
