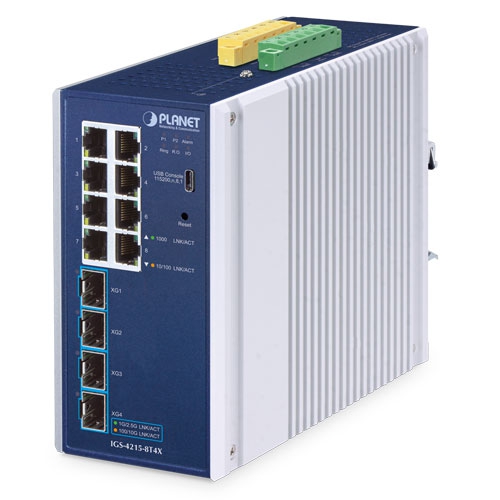

IP30 Industrial 8-Port 10/100/1000T + 4-Port 10G SFP+ Ethernet Switch (-40~75 degrees C, dual 9~48V DC/24V AC, supports 1G/2.5G/10G SFP transceivers)
IP30 Industrial 8-Port 10/100/1000T + 4-Port 10G SFP+ Ethernet Switch (-40~75 degrees C, dual 9~48V DC/24V AC, supports 1G/2.5G/10G SFP transceivers)
IP30 Slim type 8-Port Industrial Manageable Gigabit Ethernet Switch (-40 to 75 degree C, dual redundant power input on 12-48VDC / 24VAC terminal block, SNMPv3, 802.1Q VLAN, IGMP Snooping, TLS, SSH, ACL, Cybersecurity, ERPS Ring features, supports CloudViewer app and MQTT)
IP30 Slim type 8-Port Industrial Manageable Gigabit Ethernet Switch (-40 to 75 degree C, dual redundant power input on 12-48VDC / 24VAC terminal block, SNMPv3, 802.1Q VLAN, IGMP Snooping, TLS, SSH, ACL, Cybersecurity, ERPS Ring features, supports CloudViewer app and MQTT)
IP30 19" Rack Mountable Industrial L2/L4 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Switch (-40~75 degrees C, redundant power input on 100~240V AC and 24~60V DC terminal block, DIDO, Type-C console port, 802.1Q VLAN, IGMP Snooping, TLSv1.2, SSHv2, SNMPv3 Cybersecurity, ACL, ERPS Ring, CloudViewerPro app,NMSViewerPro app and NMS MQTT, supports 100FX, 1000X, 2.5G SFP and 10G SFP+)
IP30 19" Rack Mountable Industrial L2/L4 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Switch (-40~75 degrees C, redundant power input on 100~240V AC and 24~60V DC terminal block, DIDO, Type-C console port, 802.1Q VLAN, IGMP Snooping, TLSv1.2, SSHv2, SNMPv3 Cybersecurity, ACL, ERPS Ring, CloudViewerPro app,NMSViewerPro app and NMS MQTT, supports 100FX, 1000X, 2.5G SFP and 10G SFP+)
Hardware Specifications | |
---|---|
Copper Ports | 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Ports 1 to 8) |
SFP Ports | 4 10GBASE-SR/LR SFP+ interfaces (Port XG1 to Port XG4) Backward compatible with 1G/2.5GBASE-SX/LX/BX SFP transceivers |
Console | 1 x USB Type C to RS232 serial port (115200,8, N, 1) |
Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
Connector | Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 Removable 6-pin terminal block for DI/DO interface Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND |
Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC |
DI, DO | 2 digital input (DI) Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input load to 24V DC, 10mA max. 2 digital output (DO) Open collector to 24V DC, 100mA max. |
Power Requirements | 9~48V DC, 2A (max.) or 24V AC, 0.8A (max.) |
Power Consumption / Dissipation | DC:Max. 5.57 watts / 19BTU (system on) Max. 11.6 watts / 39.6BTU (Full loading) AC:Max. 4.7 watts / 16.04BTU (system on) Max. 10.6 watts / 36.2BTU (Full loading) |
Dimensions (W x D x H) | 76 x 135 x 152 mm |
Weight | 1232g |
Enclosure | IP30 aluminum case |
Installation | DIN-rail kit and wall-mount ear |
ESD Protection | Contact Discharge 6KV DC Air Discharge 8KV DC |
LED | System: Power 1 (Green) Power 2 (Green) Alarm (Red) Ring (Green) R.O.(Green) I/O (Red) Per 10/100/1000T RJ45: Up:1000 LNK/ACT (Green) Down:10/100 LNK/ACT (Amber) Per 10G SFP Interface: 1G/2.5G LNK/ACT (Green) 100/10G LNK/ACT (Amber) |
Switching Specifications | |
Switch Architecture | Store-and-Forward |
Switch Fabric | 96Gbps/non-blocking |
Switch Throughput@64 bytes | 71.43Mpps @64 bytes |
MAC Address Table | 16K entries |
Shared Data Buffer | 12Mbits |
Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
Jumbo Frame | 12 Kbytes |
Layer 2 Functions | |
Port Mirroring | TX/RX/Both Many-to-1 monitor Up to 4 sessions |
VLAN | 802.1Q tagged VLAN 802.1ad Q-in-Q tunneling (VLAN stacking) Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Management VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs |
Link Aggregation | IEEE 802.3ad LACP and static trunk Supports 8 groups with 8 ports per trunk |
Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
IGMP Snooping | IPv4 IGMP snooping v2, v3 IGMP querier Up to 256 multicast groups |
MLD Snooping | IPv6 MLD snooping v2, v3, up to 256 multicast groups |
Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE |
QoS | 8 mapping IDs to 8 level priority queues Port number 802.1p priority DSCP/IP precedence of IPv4/IPv6 packets Traffic classification based, strict priority and WRR Ingress/Egress Rate Limit per port bandwidth control |
Ring | Supports ERPS, and complies with ITU-T G.8032 Recovery time < 450ms |
Security Functions | |
Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE Max. 256 ACL entries |
Port Security | Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication |
MAC Security | IP-MAC port binding MAC filter Static MAC address, max. 256 static MAC entries |
Enhanced Security | HCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard |
Management Functions | |
Basic Management Interfaces | USB to RS232 Console Web browser Telnet SNMP v1, v2c |
Secure Management Interfaces | SSHv2, TLSv1.2, SNMP v3 |
System Management | Firmware upgrade by HTTP/TFTP protocol through Ethernet network Configuration upload/download through HTTP/TFTP LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System/CloudViewer/CloudViewerPro |
Event Management | Remote/Local Syslog System log |
SNMP MIBs | RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE802.3ae 10Gb/s Ethernet IEEE 802.3x Flow Control and Back Pressure IEEE 802.3ad Port Trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1ab LLDP IEEE 802.3az for Energy-Efficient Ethernet RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 ITU-T G.8032 ERPS Ring |
Environment | |
Operating Temperature | -40 ~ 75 °C |
Storage Temperature | -40 ~ 85 °C |
Humidity | 5 ~ 95% (non-condensing) |
Hardware Specifications | |
---|---|
Copper Ports | 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Ports 1 to 8) |
SFP Ports | 4 10GBASE-SR/LR SFP+ interfaces (Port XG1 to Port XG4) Backward compatible with 1G/2.5GBASE-SX/LX/BX SFP transceivers |
Console | 1 x USB Type C to RS232 serial port (115200,8, N, 1) |
Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
Connector | Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 Removable 6-pin terminal block for DI/DO interface Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND |
Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC |
DI, DO | 2 digital input (DI) Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input load to 24V DC, 10mA max. 2 digital output (DO) Open collector to 24V DC, 100mA max. |
Power Requirements | 9~48V DC, 2A (max.) or 24V AC, 0.8A (max.) |
Power Consumption / Dissipation | DC:Max. 5.57 watts / 19BTU (system on) Max. 11.6 watts / 39.6BTU (Full loading) AC:Max. 4.7 watts / 16.04BTU (system on) Max. 10.6 watts / 36.2BTU (Full loading) |
Dimensions (W x D x H) | 76 x 135 x 152 mm |
Weight | 1232g |
Enclosure | IP30 aluminum case |
Installation | DIN-rail kit and wall-mount ear |
ESD Protection | Contact Discharge 6KV DC Air Discharge 8KV DC |
LED | System: Power 1 (Green) Power 2 (Green) Alarm (Red) Ring (Green) R.O.(Green) I/O (Red) Per 10/100/1000T RJ45: Up:1000 LNK/ACT (Green) Down:10/100 LNK/ACT (Amber) Per 10G SFP Interface: 1G/2.5G LNK/ACT (Green) 100/10G LNK/ACT (Amber) |
Switching Specifications | |
Switch Architecture | Store-and-Forward |
Switch Fabric | 96Gbps/non-blocking |
Switch Throughput@64 bytes | 71.43Mpps @64 bytes |
MAC Address Table | 16K entries |
Shared Data Buffer | 12Mbits |
Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
Jumbo Frame | 12 Kbytes |
Layer 2 Functions | |
Port Mirroring | TX/RX/Both Many-to-1 monitor Up to 4 sessions |
VLAN | 802.1Q tagged VLAN 802.1ad Q-in-Q tunneling (VLAN stacking) Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Management VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs |
Link Aggregation | IEEE 802.3ad LACP and static trunk Supports 8 groups with 8 ports per trunk |
Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
IGMP Snooping | IPv4 IGMP snooping v2, v3 IGMP querier Up to 256 multicast groups |
MLD Snooping | IPv6 MLD snooping v2, v3, up to 256 multicast groups |
Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE |
QoS | 8 mapping IDs to 8 level priority queues Port number 802.1p priority DSCP/IP precedence of IPv4/IPv6 packets Traffic classification based, strict priority and WRR Ingress/Egress Rate Limit per port bandwidth control |
Ring | Supports ERPS, and complies with ITU-T G.8032 Recovery time < 450ms |
Security Functions | |
Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE Max. 256 ACL entries |
Port Security | Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication |
MAC Security | IP-MAC port binding MAC filter Static MAC address, max. 256 static MAC entries |
Enhanced Security | HCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard |
Management Functions | |
Basic Management Interfaces | USB to RS232 Console Web browser Telnet SNMP v1, v2c |
Secure Management Interfaces | SSHv2, TLSv1.2, SNMP v3 |
System Management | Firmware upgrade by HTTP/TFTP protocol through Ethernet network Configuration upload/download through HTTP/TFTP LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System/CloudViewer/CloudViewerPro |
Event Management | Remote/Local Syslog System log |
SNMP MIBs | RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE802.3ae 10Gb/s Ethernet IEEE 802.3x Flow Control and Back Pressure IEEE 802.3ad Port Trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1ab LLDP IEEE 802.3az for Energy-Efficient Ethernet RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 ITU-T G.8032 ERPS Ring |
Environment | |
Operating Temperature | -40 ~ 75 °C |
Storage Temperature | -40 ~ 85 °C |
Humidity | 5 ~ 95% (non-condensing) |
IP30 Industrial L3 8-Port 1000T + 2-Port 1G/2.5G SFP + 2-Port 10G SFP+ Full Managed Switch (-40 to 75 C, dual redundant power input on 12~48VDC terminal block, DIDO, ERPS Ring, 1588, Modbus TCP, Cybersecurity features, Hardware Layer3 OSPFv2 and IPv4/IPv6 Static Routing, supports CloudViewer app and MQTT, supports 100FX, 1000X, 2.5G SFP and 10G SFP+)
IP30 Industrial L3 8-Port 1000T + 2-Port 1G/2.5G SFP + 2-Port 10G SFP+ Full Managed Switch (-40 to 75 C, dual redundant power input on 12~48VDC terminal block, DIDO, ERPS Ring, 1588, Modbus TCP, Cybersecurity features, Hardware Layer3 OSPFv2 and IPv4/IPv6 Static Routing, supports CloudViewer app and MQTT, supports 100FX, 1000X, 2.5G SFP and 10G SFP+)
IP30 Industrial L2/L4 8-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch (-40~75 degrees C, dual redundant power input on 9~48VDC/24VAC terminal block, supports ERPS Ring, CloudViewer app, MQTT and Cybersecurity feature)
IP30 Industrial L2/L4 8-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch (-40~75 degrees C, dual redundant power input on 9~48VDC/24VAC terminal block, supports ERPS Ring, CloudViewer app, MQTT and Cybersecurity feature)
IP30 Industrial L2/L4 4-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch (-40~75 degrees C, dual redundant power input on 9~48VDC/24VAC terminal block, supports ERPS Ring, CloudViewer app, MQTT and Cybersecurity feature)
IP30 Industrial L2/L4 4-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch (-40~75 degrees C, dual redundant power input on 9~48VDC/24VAC terminal block, supports ERPS Ring, CloudViewer app, MQTT and Cybersecurity feature)
IP30 Industrial L2+/L4 4-Port 1000T + 2-Port 1G/2.5G SFP Full Managed Switch (-40 to 75 C, dual redundant power input on 12~48VDC terminal block, ERPS Ring, 1588, Modbus TCP, Port Backup, Cybersecurity features, IPv4/IPv6 Static Routing, supports CloudViewer app and MQTT)
IP30 Industrial L2+/L4 4-Port 1000T + 2-Port 1G/2.5G SFP Full Managed Switch (-40 to 75 C, dual redundant power input on 12~48VDC terminal block, ERPS Ring, 1588, Modbus TCP, Port Backup, Cybersecurity features, IPv4/IPv6 Static Routing, supports CloudViewer app and MQTT)
IP30 Industrial 8* 10/100/1000TP + 2* 100/1G SFP + 2*100/1G/2.5G SFP Full Managed Ethernet Switch (-40 to 75 C, dual redundant power input on 12~72VDC terminal block, 2*DI, 2*DO, ERPS Ring, 1588 PTP TC, Modbus TCP, Cybersecurity features, IPv4/IPv6 Static Routing and MQTT)
IP30 Industrial 8* 10/100/1000TP + 2* 100/1G SFP + 2*100/1G/2.5G SFP Full Managed Ethernet Switch (-40 to 75 C, dual redundant power input on 12~72VDC terminal block, 2*DI, 2*DO, ERPS Ring, 1588 PTP TC, Modbus TCP, Cybersecurity features, IPv4/IPv6 Static Routing and MQTT)
Индустриальное оборудование от DTC Group
DTC Group предлагает широкий ассортимент индустриального оборудования, соответствующего самым высоким стандартам качества и надежности. Наши продукты обеспечивают эффективное управление и защиту промышленных сетей, что критически важно для стабильной работы вашего бизнеса.
Основные категории индустриального оборудования от DTC Group:
- Беспроводное оборудование: Надежные решения для беспроводной связи, обеспечивающие стабильную и быструю передачу данных в любых условиях.
- Промышленный Интернет вещей, LoRaWAN: Инновационные решения для подключения и управления устройствами Интернета вещей, позволяющие оптимизировать производственные процессы.
- Промышленная автоматизация: Современные системы автоматизации, помогающие повысить эффективность и продуктивность производства.
- Коммутаторы EN50155, IEC 61850-3: Высококачественные коммутаторы, разработанные для использования в суровых условиях промышленных сетей.
- Питание и компоненты PoE: Надежные решения для питания устройств через Ethernet, обеспечивающие удобство и экономию ресурсов.
- Промышленные коммутаторы, маршрутизаторы: Надежные коммутаторы и маршрутизаторы для стабильной работы промышленных сетей.
- Промышленные медиаконвертеры: Устройства для преобразования сигналов между различными типами медиа, обеспечивающие гибкость и надежность сети.
Основные преимущества индустриального оборудования от DTC Group:
- Высокое качество: Наши продукты изготовлены с использованием передовых технологий и материалов, что обеспечивает их долговечность и надежность.
- Надежность: Мы гарантируем стабильную работу нашего оборудования даже в самых сложных условиях эксплуатации.
- Инновационность: Постоянно совершенствуем наши решения, чтобы соответствовать требованиям рынка и обеспечивать лучшие результаты для наших клиентов.
- Гибкость: Наше оборудование легко интегрируется с существующими системами и может быть настроено под конкретные потребности вашего бизнеса.
Выбирайте DTC Group для надежного и инновационного индустриального оборудования, которое обеспечит стабильную и эффективную работу вашего производства.
