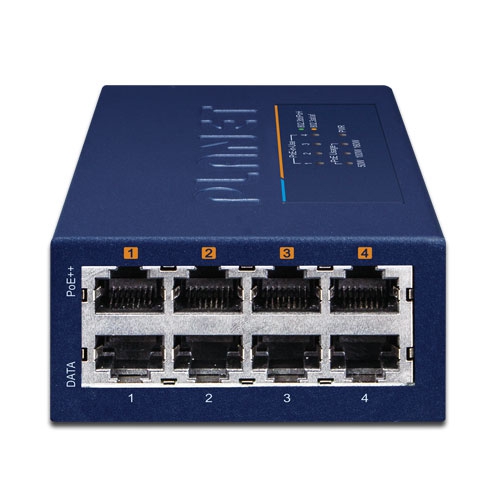

UPOE-400 - 4-Port Multi-Gigabit 802.3bt PoE++ Injector Hub (160 Watts)
Hardware Specifications | |
---|---|
Copper Ports | “Data” Input Ports “Data + Power” Output Ports 4 x RJ45 |
LED Indicator | System: Power (Green) PoE-in-Use: 802.3bt/PoH (Green) 802.3at/af (Orange) PoE Usage: 50W/100W/160W (Amber) |
Data Rate | 10/100/1000/2500/5000Mbps |
Power Requirements | DC 52~54V |
Power Consumption (Ethernet Full Loading) | System ON without loading AC 110V: 0.4watts/1.3BTU AC 220V: 0.3watts/1BTU Full loading with PoE AC 110V: 242watts/825BTU AC 220V: 236watts/805BTU |
DIP Switch | 802.3bt:90W PoE Output PoH + Legacy: 95W PoE Output Force: 60W PoE Output |
Dimensions (W x D x H) | 94 x 70.3 x 39.2mm |
Weight | 275g |
Enclosure | Metal case |
Installation | Wall-mount and DIN-rail kit (optional) |
Power over Ethernet | |
PoE Standard | IEEE 802.3bt PoE++, 4-pair type 4 PSE Compatible with IEEE 802.3at PoE+ PSE |
PoE Power Supply Type | End-span + Mid-span |
Power Pin Assignment | End-span: 1/2 (-), 3/6 (+); Mid-span: 4/5 (+), 7/8 (-) |
PoE Power Budget (max.) | 160 watts |
Number of devices that can be powered | 4 |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class B, CE |
Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus |
Environment | |
Temperature | Operating: 0~50 degrees C Storage: -10~70 degrees C |
Humidity (non-condensing) | Operating: 5~95% Storage: 5~95% |
