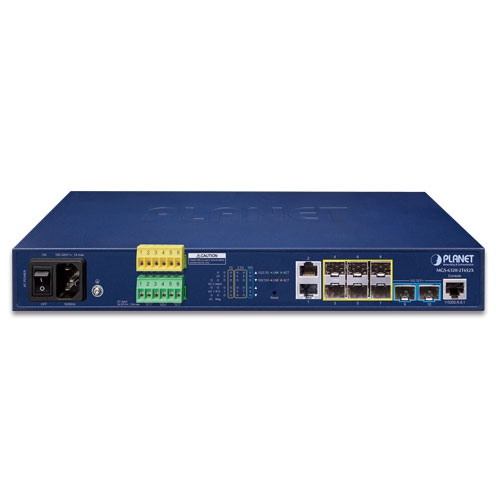

MGS-6320-2T6S2X - L3 2-Port 100/1000T + 2-Port 100/1000X SFP + 4-Port 2.5G SFP + 2-Port 10G SFP+
Hardware Specifications | |
---|---|
Copper Ports | 2 100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Port 1 and port 2) |
SFP Ports | 2 1000BASE-SX/LX/BX SFP ports (Port 3 and port 4) Compatible with 100BASE-FX SFP. 4 100/1000/2500BASE-X SFP ports (Port 5 and port 8) |
SFP+ Ports | 2 1000/2500/10GBASE-X SFP ports (Port 9 and port 10) |
Console | 1 x RJ45 serial port (115200, 8, N, 1) |
Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
RAM | 512Mbytes |
Flash Memory | 64Mbytes |
Dimensions (W x D x H) | 330 x 153 x 44 mm, 1U high |
Weight | 1486g |
Power Requirements | AC 100~240V, 50/60Hz 1A 24V DC @ 1.5A, Range: 24V ~ 57V DC |
Power Consumption | Max. 16.2 watts/55.2 BTU (AC input) Max. 17.6 watts/60 BTU (DC input) |
Alarm | One relay output for power failure. Alarm Relay current carry ability: 1A @ DC 24V |
DI/DO | 2 Digital Input (DI): Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input Load to 24V DC, 10mA max. 2 Digital Output (DO): Open collector to 24VDC, 100mA max. |
ESD Protection | 6KV DC |
LED | System: PWR (Green), DC 1 (Green), DC 2 (Green) DI/DO (Red), Alarm (Red), Ring (Green), Ring Owner (Green) Gigabit RJ45 Ports (Ports 1 to 2) 100 LNK/ACT (Amber) 1G LNK/ACT (Green) Gigabit SFP Ports (Ports 3 to 4) 100 LNK/ACT (Amber) 1G LNK/ACT (Green) Gigabit SFP Ports (Ports 5 to 8) 100 LNK/ACT (Amber) 1G/2.5G LNK/ACT (Green) 10 Gigabit SFP Ports (Ports 9 to 10) 10G LNK/ACT (Amber) 1G/2.5G LNK/ACT (Green) |
Switching Specifications | |
Switch Architecture | Store-and-Forward |
Switch Fabric | 68Gbps/non-blocking |
Throughput | 50.59Mpps @ 64Bytes packet |
Address Table | 8K entries, automatic source address learning and aging |
RAM | 512Mbytes |
Flash | 64Mbytes |
Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
Jumbo Frame | 10KB |
Layer 3 Functions | |
IP Interfaces | Max. 32 VLAN interfaces |
Routing Table | Max. 32 static route entries Max. 1K routing table entries |
Routing Protocols | IPv4 RIPv1/v2 IPv4 OSPFv2 IPv6 OSPFv3 IPv4 hardware static routing IPv6 hardware static routing |
Layer 2 Functions | |
Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable/enable Port link capability control |
Port Status | Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
Port Mirroring | TX/RX/Both Many-to-1 monitor Supports up to 5 sessions |
VLAN | IEEE 802.1Q tag-based VLAN, IEEE 802.1ad Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) GVRP Up to 4K VLAN groups, out of 4094 VLAN IDs |
Link Aggregation | IEEE 802.3ad LACP/Static Trunk Supports 5 trunk groups with 10 ports per trunk group |
Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol |
QoS | Traffic classification based, strict priority and WRR 8-level priority for switching - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP/TOS field in IP packet |
Ring | Supports ERPS, and complies with ITU-T G.8032 |
IGMP Snooping | IGMP (v1/v2/v3) Snooping, up to 255 multicast groups IGMP Querier mode support |
MLD Snooping | MLD (v1/v2) Snooping, up to 255 multicast groups MLD Querier mode support |
Bandwidth Control | Per port bandwidth control Ingress: 500Kb~13128Mbps Egress: 500Kb~13128Mbps |
Security Functions | |
Access Control List | IP-based ACL/MAC-based ACL ACL based on: - MAC Address - IP Address - Ethertype - Protocol Type - VLAN ID - DSCP - 802.1p Priority Up to 512 entries |
Security | Port security IP source guard, up to 512 entries Dynamic ARP inspection, up to 1K entries Command line authority control based on user level Static MAC address, up to 64 entries |
AAA | RADIUS client TACACS+ client |
Network Access Control | IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication |
Switch Management Functions | |
Basic Management Interfaces | Console; Telnet; Web Browser; SNMP v1, v2c |
Secure Management Interfaces | SSHv2, TLS v1.2, SNMP v3 |
System Management | Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote Syslog System log LLDP protocol NTP PLANET Smart Discovery Utility PLANET NMS system and CloudViewer |
Event Management | Remote Syslog Local System log SMTP |
SNMP MIBs | SNMP MIBs RFC 1213 MIB-II RFC 2863 IF-MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2737 Entity MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2618 RADIUS Client MIB RFC 3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3z 1000BASE-SX/LX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5GBASE-X IEEE 802.3ae 10Gb/s Ethernet IEEE802.3x flow control and back pressure IEEE802.3ad port trunk with LACP IEEE802.1D Spanning Tree Protocol IEEE802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE802.1p Class of Service IEEE802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 RFC 2328 OSPF v2 RFC 2453 RIP v2 |
Environment | |
Operating | Temperature: -10 ~ 60 degrees C for DC power input 0 ~ 50 degrees C for AC power input Relative Humidity: 5 ~ 95% (non-condensing) |
Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
