Телекоммуникационное оборудование
24-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Managed Ethernet Switch (370W, 250m Extend mode, IPv4/IPv6 Management, SNMPv3, 802.1s MSTP, 802.1x Authentication, ACL, PD Alive Check, Cybersecurity features)
24-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Managed Ethernet Switch (370W, 250m Extend mode, IPv4/IPv6 Management, SNMPv3, 802.1s MSTP, 802.1x Authentication, ACL, PD Alive Check, Cybersecurity features)
24-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Managed Ethernet Switch (240W, 250m Extend mode, IPv4/IPv6 Management, SNMPv3, 802.1s MSTP, 802.1x Authentication, ACL, PD Alive Check, Cybersecurity features)
24-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Managed Ethernet Switch (240W, 250m Extend mode, IPv4/IPv6 Management, SNMPv3, 802.1s MSTP, 802.1x Authentication, ACL, PD Alive Check, Cybersecurity features)
8-Port 10/100/1000T Gigabit 802.3at POE Ethernet Switch plus 1-Port Gigabit Ethernet Switch (100W POE Budget with External Power Supply, VLAN mode support)
8-Port 10/100/1000T Gigabit 802.3at POE Ethernet Switch plus 1-Port Gigabit Ethernet Switch (100W POE Budget with External Power Supply, VLAN mode support)
Layer 3 8-Port 10/100/1000T 90W 802.3bt PoE + 16-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Managed Ethernet Switch (475 Watts PoE budget, hardware-based Layer 3 RIPv1/v2, OSPFv2 dynamic routing, supports ERPS Ring, PoE PD alive check and schedule management,)
Layer 3 8-Port 10/100/1000T 90W 802.3bt PoE + 16-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Managed Ethernet Switch (475 Watts PoE budget, hardware-based Layer 3 RIPv1/v2, OSPFv2 dynamic routing, supports ERPS Ring, PoE PD alive check and schedule management,)
| Hardware Specifications | |
|---|---|
| Copper Port | 8 10/100/1000BASE-T RJ45 auto MDI/MDIX ports |
| Fiber Port | 2 1000BASE-X SFP slots |
| PoE Inject Port | 2 ports with 802.3bt PoE++ injector function (Ports 1 to 2) 4 ports with 802.3af/at PoE+ injector function (Ports 3 to 6) |
| DIP Switch | PoE power feeding options (Legacy/BT/UPOE) selection |
| Thermal Fan | 1 |
| Power Requirements | AC 100~240V, 50/60Hz, 2.5A max |
| Power Consumption | Max. 200 watts, 682.4 BTU |
| Dimensions (W x D x H) | 220 x 150 x 44 mm |
| Weight | 1322g |
| Surge Protection | Differential mode ±2KV Common mode ±4KV |
| ESD Protection | Contact: ±6KV Air: ±8KV |
| Installation | Desktop, Wall-mount or Rack-mount installation |
| LED Indicators | System: Power (Green) 10/100/1000BASE-T RJ45 interfaces: 10/100/1000Mbps LNK/ACT (Green) 1000BASE-X SFP interfaces: 1000Mbps LNK/ACT (Green) PoE interfaces: PoE-in-Use (Amber) |
| Switching | |
| Switch Architecture | Store-and-Forward |
| MAC Address Table | 4K MAC address table with auto learning function |
| Switch Fabric | 20Gbps |
| Switch Throughput | 13.39Mpps |
| Jumbo Packet | 9K bytes |
| Flow Control | Back pressure for half duplex. IEEE 802.3x pause frame for full duplex |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE IEEE 802.3bt Power over Ethernet Plus Plus/PSE |
| PoE Power Supply Type | Ports 1 to 2: End-span + Mid-span Ports 3 to 6: End-span |
| Power Pin Assignment | Ports 1 to 2: 4 pairs 1/2 (-), 3/6 (+) and 4/5 (+), 7/8 (-) Ports 3 to 6: 2 pairs 1/2 (-), 3/6 (+) |
| PoE Power Output | Ports 1 to 2: 95W max. Ports 3 to 6: 32W max. |
| Total PoE Power Budget | 180 watts |
| Standard Conformance | |
| EMI Safety | FCC Part 15 Class A, CE |
| Standard Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T Gigabit 1000BASE-T IEEE 802.3x Flow Control and Back Pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus |
| EEE | IEEE 802.3az |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Hardware Specifications | |
|---|---|
| Copper Port | 8 10/100/1000BASE-T RJ45 auto MDI/MDIX ports |
| Fiber Port | 2 1000BASE-X SFP slots |
| PoE Inject Port | 2 ports with 802.3bt PoE++ injector function (Ports 1 to 2) 4 ports with 802.3af/at PoE+ injector function (Ports 3 to 6) |
| DIP Switch | PoE power feeding options (Legacy/BT/UPOE) selection |
| Thermal Fan | 1 |
| Power Requirements | AC 100~240V, 50/60Hz, 2.5A max |
| Power Consumption | Max. 200 watts, 682.4 BTU |
| Dimensions (W x D x H) | 220 x 150 x 44 mm |
| Weight | 1322g |
| Surge Protection | Differential mode ±2KV Common mode ±4KV |
| ESD Protection | Contact: ±6KV Air: ±8KV |
| Installation | Desktop, Wall-mount or Rack-mount installation |
| LED Indicators | System: Power (Green) 10/100/1000BASE-T RJ45 interfaces: 10/100/1000Mbps LNK/ACT (Green) 1000BASE-X SFP interfaces: 1000Mbps LNK/ACT (Green) PoE interfaces: PoE-in-Use (Amber) |
| Switching | |
| Switch Architecture | Store-and-Forward |
| MAC Address Table | 4K MAC address table with auto learning function |
| Switch Fabric | 20Gbps |
| Switch Throughput | 13.39Mpps |
| Jumbo Packet | 9K bytes |
| Flow Control | Back pressure for half duplex. IEEE 802.3x pause frame for full duplex |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE IEEE 802.3bt Power over Ethernet Plus Plus/PSE |
| PoE Power Supply Type | Ports 1 to 2: End-span + Mid-span Ports 3 to 6: End-span |
| Power Pin Assignment | Ports 1 to 2: 4 pairs 1/2 (-), 3/6 (+) and 4/5 (+), 7/8 (-) Ports 3 to 6: 2 pairs 1/2 (-), 3/6 (+) |
| PoE Power Output | Ports 1 to 2: 95W max. Ports 3 to 6: 32W max. |
| Total PoE Power Budget | 180 watts |
| Standard Conformance | |
| EMI Safety | FCC Part 15 Class A, CE |
| Standard Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T Gigabit 1000BASE-T IEEE 802.3x Flow Control and Back Pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus |
| EEE | IEEE 802.3az |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Desktop Switch (120W PoE Budget, Standard/VLAN/Extend mode, supports PD alive check, 10-inch and rack-mountable)
8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Desktop Switch (120W PoE Budget, Standard/VLAN/Extend mode, supports PD alive check, 10-inch and rack-mountable)
IPv4/IPv6 Managed 8-Port 10/100/1000Mbps + 2-Port 100/1000X SFP Gigabit Desktop Ethernet Switch (POE PD, External PWR, SNMPv3, 802.1Q VLAN, IGMP Snooping, TLS, SSH, ACL, supports ERPS Ring, CloudViewer app, MQTT and Cybersecurity feature)
IPv4/IPv6 Managed 8-Port 10/100/1000Mbps + 2-Port 100/1000X SFP Gigabit Desktop Ethernet Switch (POE PD, External PWR, SNMPv3, 802.1Q VLAN, IGMP Snooping, TLS, SSH, ACL, supports ERPS Ring, CloudViewer app, MQTT and Cybersecurity feature)
| Hardware Specifications | |
|---|---|
| Copper Ports | 8 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports |
| SFP Ports | 2 x 100/1000BASE-X SFP interfaces Supports 100/1000Mbps dual mode and DDM |
| Console | 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1) |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Dimensions (W x D x H) | 280 x 180 x 44 mm, 1U height |
| Weight | 1315g |
| Enclosure | Metal |
| Power Requirements | AC 100~240V, 50/60Hz, 2.5A, auto-sensing |
| Power Consumption/ Dissipation | 6.8 watts/ 23.2 BTU |
| ESD Protection | Contact Discharge 6KV DC Air Discharge 8KV DC |
| Fan | Fanless design |
| LED | System: PWR x1 (Green) SYS x1 (Green) Per PoE Port (Port 1 to Port 8): LNK/ACT x1 (Green) Per Gigabit SFP Port (Port 9 to Port 10): 100/1000 LNK/ACT x1 (Green) |
| Switching Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 20Gbps/non-blocking |
| Switch Throughput@64Bytes | 14.88Mpps |
| Address Table | 8K entries |
| Shared Data Buffer | 4.1 megabits |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 10K bytes |
| Layer 2 Functions | |
| Port Mirroring | TX/RX/both Many-to-1 monitor Up to 4 sessions |
| VLAN | IEEE 802.1Q tagged VLAN IEEE 802.1ad Q-in-Q tunneling Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Up to 256 VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP/Static Trunk Supports1 trunk group with 2 ports per trunk |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| IGMP Snooping | IPv4 IGMP (v2/v3) Snooping IPv4 IGMP Querier Up to 256 multicast groups |
| MLD Snooping | IPv6 MLD (v1/v2) Snooping Up to 256 multicast groups |
| QoS | 8 mapping ID to 8 level priority queues - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP field in IP packet Traffic classification based, strict priority and WRR |
| Ring | Supports ERPS, and complies with ITU-T G.8032 |
| Security Functions | |
| Access Control List | IPv4/IPv6 IP-based ACL MAC-based ACL |
| Security | P-MAC port binding MAC filter Static MAC address DHCP Snooping and DHCP Option82 DoS attack prevention ARP inspection IP source guard |
| AAA | Built-in RADIUS client to co-operate with RADIUS server |
| Network Access Control | IEEE 802.1X – Port-based authentication RADIUS/TACACS+ user access authentication |
| Management Functions | |
| Basic Management Interfaces | RS232 console Web browser Telnet SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLS v1.2, SNMP v3 |
| System Management | Firmware upgrade by HTTP/TFTP protocol through Ethernet network LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System |
| Event Management | Remote/Local Syslog System log |
| SNMP MIBs | RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree protocol IEEE 802.1w Rapid Spanning Tree protocol IEEE 802.1s Multiple Spanning Tree protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 ITU G.8032 ERPS Ring |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Hardware Specifications | |
|---|---|
| Copper Ports | 8 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports |
| SFP Ports | 2 x 100/1000BASE-X SFP interfaces Supports 100/1000Mbps dual mode and DDM |
| Console | 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1) |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Dimensions (W x D x H) | 280 x 180 x 44 mm, 1U height |
| Weight | 1315g |
| Enclosure | Metal |
| Power Requirements | AC 100~240V, 50/60Hz, 2.5A, auto-sensing |
| Power Consumption/ Dissipation | 6.8 watts/ 23.2 BTU |
| ESD Protection | Contact Discharge 6KV DC Air Discharge 8KV DC |
| Fan | Fanless design |
| LED | System: PWR x1 (Green) SYS x1 (Green) Per PoE Port (Port 1 to Port 8): LNK/ACT x1 (Green) Per Gigabit SFP Port (Port 9 to Port 10): 100/1000 LNK/ACT x1 (Green) |
| Switching Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 20Gbps/non-blocking |
| Switch Throughput@64Bytes | 14.88Mpps |
| Address Table | 8K entries |
| Shared Data Buffer | 4.1 megabits |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 10K bytes |
| Layer 2 Functions | |
| Port Mirroring | TX/RX/both Many-to-1 monitor Up to 4 sessions |
| VLAN | IEEE 802.1Q tagged VLAN IEEE 802.1ad Q-in-Q tunneling Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Up to 256 VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP/Static Trunk Supports1 trunk group with 2 ports per trunk |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| IGMP Snooping | IPv4 IGMP (v2/v3) Snooping IPv4 IGMP Querier Up to 256 multicast groups |
| MLD Snooping | IPv6 MLD (v1/v2) Snooping Up to 256 multicast groups |
| QoS | 8 mapping ID to 8 level priority queues - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP field in IP packet Traffic classification based, strict priority and WRR |
| Ring | Supports ERPS, and complies with ITU-T G.8032 |
| Security Functions | |
| Access Control List | IPv4/IPv6 IP-based ACL MAC-based ACL |
| Security | P-MAC port binding MAC filter Static MAC address DHCP Snooping and DHCP Option82 DoS attack prevention ARP inspection IP source guard |
| AAA | Built-in RADIUS client to co-operate with RADIUS server |
| Network Access Control | IEEE 802.1X – Port-based authentication RADIUS/TACACS+ user access authentication |
| Management Functions | |
| Basic Management Interfaces | RS232 console Web browser Telnet SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLS v1.2, SNMP v3 |
| System Management | Firmware upgrade by HTTP/TFTP protocol through Ethernet network LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System |
| Event Management | Remote/Local Syslog System log |
| SNMP MIBs | RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree protocol IEEE 802.1w Rapid Spanning Tree protocol IEEE 802.1s Multiple Spanning Tree protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 ITU G.8032 ERPS Ring |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
IPv4/IPv6, 16-Port 10/100/1000Base-T + 2-Port 100/1000MBPS SFP L2/L4 SNMP Manageable Gigabit Ethernet Switch(supports ERPS Ring, CloudViewer app, MQTT and Cybersecurity feature)
IPv4/IPv6, 16-Port 10/100/1000Base-T + 2-Port 100/1000MBPS SFP L2/L4 SNMP Manageable Gigabit Ethernet Switch(supports ERPS Ring, CloudViewer app, MQTT and Cybersecurity feature)
Популярные товары
.webp "Медный SFP+ модуль, RJ-45, до 80м, 10Гб/с")
от 4257 грн

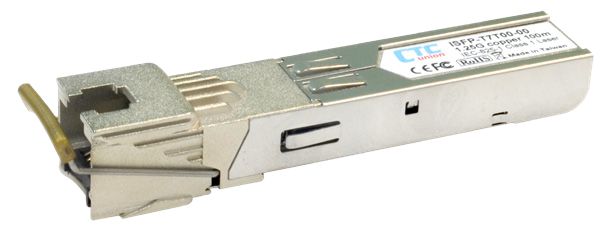

Медный SFP+ модуль со скоростью передачи до 10Гб/с на расстояние до 80м
от 903 грн

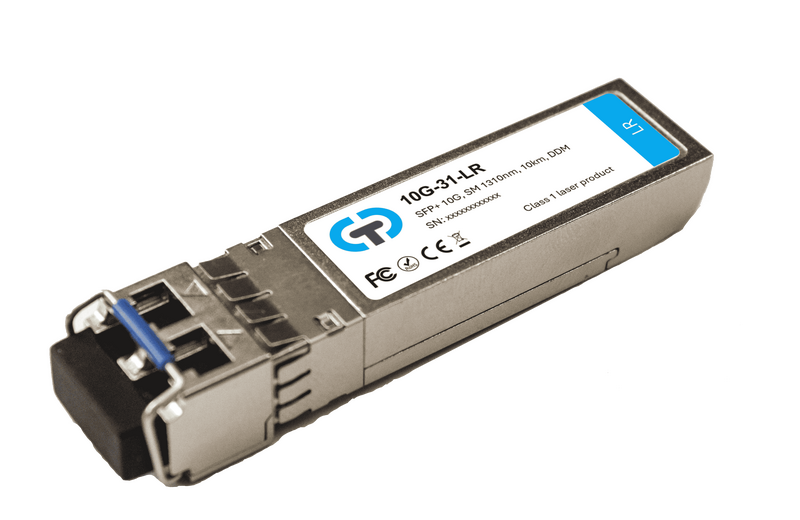

Этот 1310nm 10G SFP+ трансивер предназначен для передачи и приема данных по одномодовому оптическому волокну на расстояние до 10 км.
от 1677 грн
SFP+ трансивер CWDM DFB 10 Гбит/с предназначен для передачи и приема оптических данных по одномодовому оптическому волокну на длину линии связи 20 км. Электрический интерфейс модуля CWDM SFP+ LR соответствует электрическим спецификациям SFI.
от 645 грн
SFP медиа конвертер - это надежное устройство для передачи Ethernet сигнала через оптоволоконные каналы. С одним SFP и одним RJ45 портом, он обеспечивает экономичное решение для продления дистанции передачи до 120 км, идеально подходит для предприятий, требующих стабильного соединения на больших расстояниях.
Телекоммуникационные решения от DTC Group
DTC Group предлагает широкий ассортимент телекоммуникационного оборудования, соответствующего самым высоким стандартам качества и надежности. Наши продукты включают IP-АТС, SIP VoIP шлюзы, медиаконвертери, коммутатори, маршрутизаторы и многое другое. Мы обеспечиваем современные решения для бизнеса, которые помогают оптимизировать коммуникационные процессы и повысить эффективность работы.
Наше телекоммуникационное оборудование разработано с учетом потребностей современного бизнеса. Мы предлагаем инновационные решения, которые позволяют снизить затраты на связь и повысить продуктивность. Благодаря нашим продуктам, вы сможете обеспечить бесперебойную связь между офисами, удаленными сотрудниками и клиентами.
Основные категории телекоммуникационного оборудования от DTC Group:
- Коммутаторы, маршрутизаторы: Надежные решения для управления сетевым трафиком и обеспечения стабильной связи.
- Оптические модули: Высокоскоростные модули для передачи данных на большие расстояния.
- Оборудование xPON: Современные решения для пассивных оптических сетей.
- SDH / PDH / E1 оборудование: Надежные системы для передачи данных и голоса.
- Медиаконвертеры: Устройства для преобразования сигналов между различными типами медиа.
- LAN экстендеры / доступ xDSL: Решения для расширения локальных сетей и доступа в интернет через DSL.
- IP телефония: Инновационные решения для голосовой связи через интернет.
- Транспортная сеть: Оборудование для построения надежных транспортных сетей.
Основные преимущества телекоммуникационного оборудования от DTC Group:
- Высокое качество: Наши продукты изготовлены с использованием передовых технологий и материалов.
- Надежность: Мы гарантируем стабильную работу нашего оборудования даже в самых сложных условиях.
- Инновационность: Постоянно совершенствуем наши решения, чтобы соответствовать требованиям рынка.
- Гибкость: Наше оборудование легко интегрируется с существующими системами и может быть настроено под конкретные потребности вашего бизнеса.
Выбирайте DTC Group для надежного и инновационного телекоммуникационного оборудования, которое поможет вашему бизнесу достичь новых высот.
