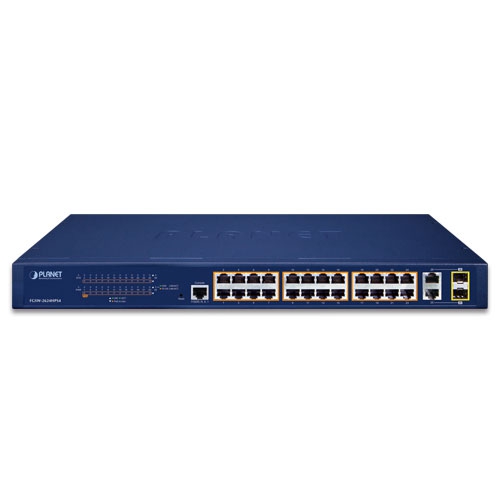

FGSW-2624HPS4 - 24-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP

Акція до 10.12 -20% на купівлю даної модифікації від 50 шт. Знижка -20% в комплекті з товарами
FGSW-2624HPS4 - 24-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP
FGSW-2624HPS4 - 24-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP
FGSW-2624HPS4 - 24-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP
Hardware Specifications
Copper Ports 24 10/100BASE-TX RJ45 Auto-MDI/MDI-X ports
PoE Injector Port 24 802.3af/802.3at PoE+ injector ports
Gigabit Copper Ports 2 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots 2 1000BASE-X SFP interfaces, shared with Port-25 to Port-26
Console 1 RS232-to-RJ45 serial port (115200, N, 8, 1)
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
LED Indicators System:
Power (Green)
SYS (Green)
10/100TX RJ45 Interfaces (Port 1 to Port 24):
LNK/ACT (Green), PoE-in-Use (Amber)
10/100/1000BASE-T RJ45 / SFP Interfaces (Port 25 to Port 26):
LNK/ACT 10/100 (Orange), 1000 (Green)
Thermal Fan 2
Power Requirements 100~240V AC, 50/60Hz, 6.5A (max.)
Power Consumption/Dissipation Max.413 watts/1409BTU
Dimensions (W x D x H) 440 x 208 x 44 mm, 1U height
Weight 2787g
Enclosure Metal
Switching
Switch Architecture Store-and-Forward
Switch Fabric 8.8Gbps/non-blocking
Switch Throughput@64bytes 6.55Mpps @64bytes
MAC Address Table 16K entries
Shared Data Buffer 4Mbits
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 16K bytes
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type Mid-span
Power Pin Assignment 4/5 (+), 7/8 (-)
PoE Power Output Per Port 53 DC, 300mA. Max. 15.4 watts (IEEE 802.3af)
Per Port 53 DC, 600mA. Max. 30 watts (IEEE 802.3at)
PoE Power Budget 370 watts
Number of PDs, 7 watts 24
Number of PDs, 15.4 watts 24
Number of PDs, 30 watts 12
Layer 2 Functions
Port Mirroring TX/RX/both
Many-to-1 monitor
VLAN Port-based VLAN, up to 26 VLAN groups
IEEE 802.1Q tagged VLAN
- Up to 256 VLAN groups, out of 4094 VLAN IDs
Protocol VLAN
Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
GVRP
Voice VLAN
Link Aggregation IEEE 802.3ad LACP supports one 2-port trunk group; static trunk supports one 2-port trunk group
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU filtering, BPDU Guard
IGMP Snooping IPv4 IGMP snooping v1/ v2 and v3
MLD Snooping IPv6 MLD snooping v1, v2
QoS Ingress/Egress Rate Limit per port bandwidth control
Storm Control support
Broadcast/ Multicast /DLF (Destination Lookup Failure)/ARP/ICMP
Traffic classification
 - IEEE 802.1p Qos/CoS
 - TCP/UDP/DSCP/IP precedence of IPv4/IPv6 packets
Strict priority and Weighted Round Robin (WRR) CoS policies
Security Functions
Access Control List IPv4/IPv6 IP-based ACL
MAC-based ACL
MAC Security Port-MAC-IP Address Binding
Port-MAC-IP Port Setting
Port-MAC-IP Entry Setting
MAC Address Binding
Static MAC
Management Functions
System Configuration Console and Telnet command line interface
Web browser
SNMP v1, v2c
Secure Management Interfaces SNMP v3, SSH, SSL
System Management IPv4 and IPv6 dual stack management BOOTP and DHCP for IP address assignment
System maintenance
- Firmware upgrade via HTTP
- Configuration upload/download through web interface
- Hardware-based reset button for system reset to factory default
SNTP Network Time Protocol
Link Layer Discovery Protocol (LLDP)
PLANET smart discovery utility
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance EEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
Environment
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 10 ~ 90% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
