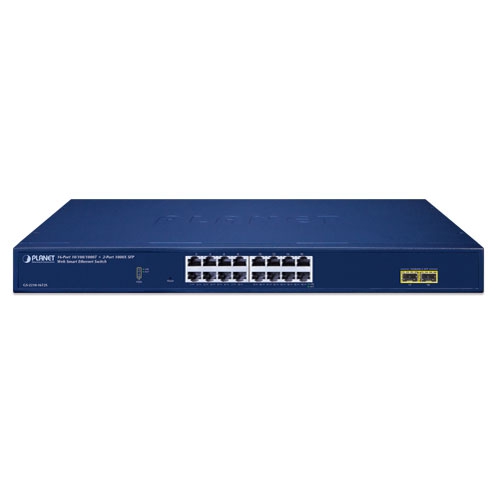

GS-2210-16T2S - 16-Port 10/100/1000T + 2-Port 1000X SFP
| Hardware Specifications | |
|---|---|
| Copper Ports | 16 10/100/1000BASE-T RJ45 copper ports |
| SFP Slots | 2 x 100/1000BASE-X SFP interface |
| Flash Memory | 16Mbytes |
| Reset Button | < 10 sec: System reboot > 10 sec: Factory default |
| ESD Protection | Contact ±6KV , Air ±8KV |
| Surge Protection | Differential mode ±2KV , Common mode ±4KV |
| Dimensions (W x D x H) | 440 x 207 x 44mm |
| Weight | 2368g |
| Power Consumption | 12.7 watts/ 43.3 BTU |
| Power Requirements | AC 100~240V, 50/60Hz |
| Fan | － |
| LED | System: PWR (Green) Ports: LNK/ACT (Green) |
| Switching Specifications | |
| Switch Architecture | Store-and-forward |
| Switch Fabric | 36Gbps/non-blocking |
| Switch Throughput | 26.78Mpps |
| Address Table | |
| Shared Data Buffer | 4.1MB |
| Jumbo Frame | 10KBytes |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Layer 2 Functions | |
| Port Configuration | EEE Green energy savings disable/enable Port disable/enable/reboot Flow control disable/enable Bandwidth control on each port Port loopback protection |
| Port Status | Display each port’s speed duplex mode, Display link status Display flow control status Display auto negotiation status Display Green energy saving status |
| Port Mirroring | In / Out / All Many-to-1 monitor |
| VLAN | 802.1Q tagged VLAN, up to 16 VLAN groups |
| Bandwidth Control | TX/RX/Both |
| Link Aggregation | Static trunk Supports 8 groups with 8 ports per trunk group |
| QoS | 8 priority queues on all switch ports Supports strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification: IEEE 802.1p CoS/ToS IPv4 DSCP Port-based WRR |
| Multicast | IPv4 IGMP v1/v2 snooping Up to 256 |
| Security Functions | |
| Security | Port isolation DHCP Snooping |
| Switch Management Functions | |
| System Configuration | Telnet, Web browser |
| Management | Authentication for IPv4 Telnet user name and password Telnet Cable Diagnostics IP address or domain name Ping Test PLANET Smart Discovery Utility PLANET NMS system PLANET NMSViewerPro |
| Standard Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit 1000BASE-SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x flow control and back pressure IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
