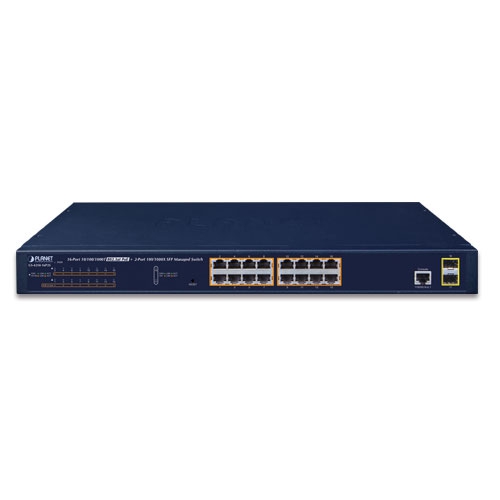

GS-4210-16P4C - 16-Port 10/100/1000T 802.3at PoE + 4-Port Gigabit TP/SFP

Акція до 10.12 -20% на купівлю даної модифікації від 50 шт. Знижка -20% в комплекті з товарами
GS-4210-16P4C - 16-Port 10/100/1000T 802.3at PoE + 4-Port Gigabit TP/SFP
GS-4210-16P4C - 16-Port 10/100/1000T 802.3at PoE + 4-Port Gigabit TP/SFP
GS-4210-16P4C - 16-Port 10/100/1000T 802.3at PoE + 4-Port Gigabit TP/SFP
Hardware Specifications
Copper Ports 20 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports
PoE Injector Port 16 ports with 802.3at/af PoE injector function with Port-1 to Port-16
SFP/mini-GBIC Slots 4 x 100/1000BASE-X SFP interfaces with Port-17 to Port-20
Supports 100/1000Mbps dual mode and DDM
Console 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1)
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
Fan 2 fans
Dimensions (W x D x H) 441 x 207 x 44 mm, 19-inch, 1U height
Weight 2.8 kg
Enclosure Metal
Power Requirements AC 100~240V, 50/60Hz, auto-sensing
Power Consumption / Dissipation 267 watts (max.)/911BTU
LED System:
PWR x 1(Green)
SYS x 1 (Green)
Per PoE Port (Port 1 to Port 16):
1000 LNK/ACT (Green) & 10/100 LNK/ACT x1 (Amber)
PoE-in-use x 1 (Amber)
Per Gigabit RJ45 Port (Port 17 to Port 20):
1000 LNK/ACT (Green) & 10/100 LNK/ACT x 1 (Amber)
Per Gigabit SFP Port (Port 17 to Port 20):
1000 LNK/ACT (Green) & 100 LNK/ACT x1 (Amber)
Switching
Switch Architecture Store-and-Forward
Switch Fabric 40Gbps/non-blocking
Switch Throughput@64Bytes 29.76Mpps
Address Table 8K entries
Shared Data Buffer 4.1 megabits
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 10K bytes
Power over Ethernet
PoE Standard IEEE 802.3af/802.3at PoE/PSE
PoE Power Supply Type End-span
PoE Power Output Per Port 54V DC, 300mA. Max. 15.4 watts (IEEE 802.3af)
Per Port 54V DC, 600mA. Max. 30 watts (IEEE 802.3at)
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 240 watts (max.)
Number of 802.3af PDs 15 units
Number of 802.3at PDs 8 units
PoE Management PD Alive Check
Scheduled Power Recycling
PoE Schedule
PoE Usage Monitoring
PoE Extension
Layer 2 Functions
Port Mirroring TX/RX/both
Many-to-1 monitor
VLAN 802.1Q tag-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Link Aggregation IEEE 802.3ad LACP/Static Trunk
Spanning Tree Protocol STP, IEEE 802.1D Spanning Tree Protocol
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
IGMP Snooping IPv4 IGMP (v2/v3) Snooping
IPv4 IGMP Querier
Up to 256 multicast groups
MLD Snooping IPv6 MLD (v1/v2) Snooping, up to 256 multicast groups
QoS 8 mapping IDs to 8 level priority queues
 Port number
 802.1p priority
 DSCP/IP precedence of IPv4/IPv6 packets
Traffic classification based, strict priority and WRR
Ingress/Egress Rate Limit per port bandwidth control
Ring Supports ERPS, and complies with ITU-T G.8032
Recovery time < 450ms
Security Functions
Access Control List IPv4/IPv6 IP-based ACL/MAC-based ACL
Port Security IEEE 802.1X – Port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication
MAC Security IP-MAC port binding
MAC filter
Static MAC address
Enhanced Security DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
Management Functions
Basic Management Interfaces RS232 to RJ45 Console
Web browser
Telnet
SNMP v1, v2c
Secure Management Interfaces SSHv2, TLS v1.2, SNMP v3
System Management Firmware upgrade by HTTP/TFTP protocol through Ethernet network
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS System/CloudViewer
Event Management Remote/Local Syslog
System log
SNMP MIBs RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
RFC 3621 Power Ethernet MIB
LLDP MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree protocol
IEEE 802.1w Rapid Spanning Tree protocol
IEEE 802.1s Multiple Spanning Tree protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 768 UDP
RFC 783 TFTP
RFC 793 TCP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU G.8032 ERPS Ring
