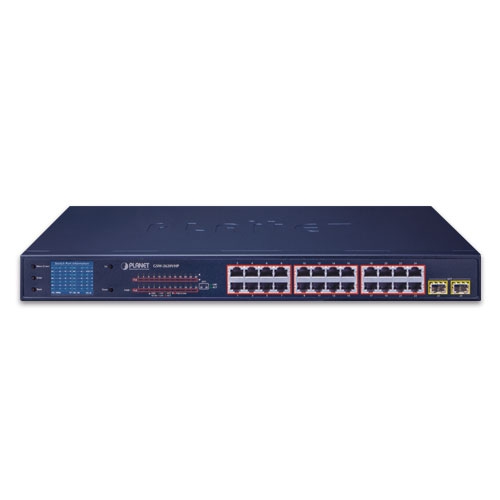

GSW-2620VHP - 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000SX SFP
Hardware Specifications | |
---|---|
802.3af/802.3at PoE Injector Port | 24 |
10/100/1000BASE-T MDI/MDIX Ports | 24 |
1000BASE-X SFP/mini-GBIC Slots | 2 |
Switch Architecture | Store-and-Forward |
Switch Fabric | 52Gbps/non-blocking |
Switch Throughput@64 bytes | 38.7Mpps@64 bytes |
MAC Address Table | 8K entries |
Maximum Frame Size | 9216 bytes |
Flow Control | IEEE 802.3x pause frame for full -duplex; back pressure for half -duplex |
LED Indicators | System: Power (Green) 10/100/1000BASE-T RJ45 Interfaces: 10/100Mbps LNK/ACT (Red) 1000Mbps LNK/ACT (Green) PoE-in-Use (Amber) 1000BASE-X SFP Interfaces: LNK/ACT (Green) |
LCD Monitor (W x D) | 40.6 x 30.5 mm, 2-inch |
Buttom | Menu, Enter, Back, Up and Down |
Dimensions (W x D x H) | 440 x 233 x 44 mm (1U height) |
Enclosure | Metal |
Weight | 3.5kg |
Power Requirements | 100~240V AC, 50/60Hz, 5A max. |
Power Consumption/Dissipation | Max. 330watts/1132 BTU |
Thermal Fan | 3 |
ESD Protection | Contact discharge of ±6KV DC Air discharge of ±8KV DC |
Surge Protection | ±6KV |
Power over Ethernet | |
PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
PoE Power Supply Type | End-span |
PoE Power Output | Per port 53V-54V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per port 53V-54V DC, 600mA. max. 30 watts (IEEE 802.3at) |
Power Pin Assignment | 1/2 (+), 3/6 (-) |
PoE Power Budget | 300 watts |
Max. Number of Class 2 PDs | 24 |
Max. Number of Class 3 PDs | 23 |
Max. Number of Class 4 PDs | 11 |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX/LX IEEE 802.3x Flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet (EEE) |
Environment | |
Operating | Temperature: -10 ~ 60 degrees C Relative Humidity: 10 ~ 90% (non-condensing) * Temperature: < 40 degrees C; Humidity: < 90% Temperature: > 40 degrees C; Humidity: < 50% |
Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
