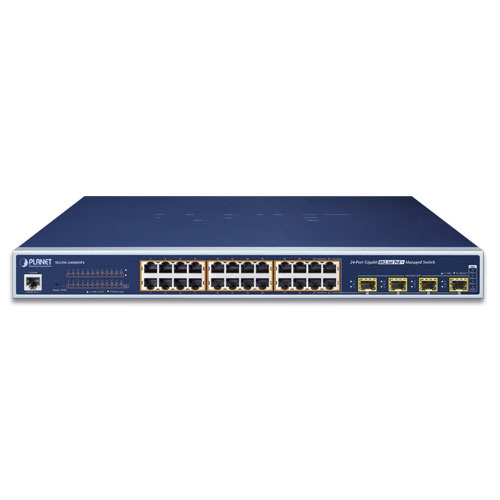

WGSW-24040HP4 - L2+ 24-Port 10/100/1000Mbps 802.3at PoE+ Managed Switch with 4 Shared SFP
Hardware Specifications | |
---|---|
Copper Ports | 24 10/ 100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
10/100/1000Mbps/SFP Combo Interfaces | 4 10/100/1000Mbps TP and SFP shared combo interfaces, SFP (Mini-GBIC) supports 100/1000Mbps Dual mode DDM, shared with Port-21 to Port-24 |
PoE Injector Port | 24 ports with 802.3at/af PoE injector function with Port-1 to Port-24 |
Console | 1 x RJ45 serial port (115200, 8, N, 1) |
Reset Button | < 5 sec: System reboot > 5 sec: Factory Default |
Smart Fan | 3 |
Power Requirements | 100~240V AC, 50/60Hz, 6.5A |
Power Consumption (Full Loading) | 521watts/1777BTU |
ESD Protection | 6KV DC |
Dimensions (W x D x H) | 440 x 300 x 44.5 mm, 1U high |
Weight | 4.2 kg |
LED | System: Power (Green) Alert: FAN 1 (Red), FAN 2 (Red), FAN 3 (Red), PWR (Red) PoE Ethernet Interfaces (Port 1 to Port 24): LNK/ACT (10/100/1000Mbps, Green), PoE-in-Use (Amber) 100/1000Mbps SFP Combo Interfaces (Port 21 to Port 24): 1000 (Green),LNK/ACT(Amber) |
Switching | |
Switch Architecture | Store-and-Forward |
Switch Fabric | 48Gbps/non-blocking |
Throughput | 35.7Mpps@64Bytes |
Address Table | 8K entries, automatic source address learning and ageing |
SDRAM | 256Mbits |
Flash | 64Mbytes |
Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
Jumbo Frame | 9K bytes |
Power over Ethernet Specifications | |
PoE Standard | IEEE 802.3at/802.3af Power over Ethernet |
PoE Power Supply Type | End-span |
PoE Power Output | Per port 54V DC, 590mA. max. 36 watts |
Power Pin Assignment | 1/2(+), 3/6(-) |
PoE Power Budget | 440 watts max. @25 degrees C 380 watts max. @50 degrees C |
PoE Ability | PD @ 7 watts: 24 units PD @ 15.4 watts: 24 units PD @ 30.8 watts: 14 units |
PoE Management | |
Active POE Device Alive Detection | Yes |
PoE Power Recycling | Yes, daily or predefined schedule |
PoE Schedule | 4 schedule profiles |
PoE System Management | System PoE admin control Total PoE power budget control Auto power input and PoE budget control PoE Legacy mode Over-temperature threshold alarm PoE usage threshold alarm |
Layer 3 Functions | |
IP Interface | Max. 8 VLAN interfaces |
Routing Table | Max. 32 routing entries |
Routing Protocols | IPv4 software static routing IPv6 software static routing |
Layer 2 Functions | |
Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable/enable |
Port Status | Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
Port Mirroring | TX/RX/Both Many-to-1 monitor |
VLAN | 802.1Q tag-based VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN VLAN Translation Voice VLAN MVR (Multicast VLAN Registration) GVRP Up to 4K VLAN groups, out of 4094 VLAN IDs |
Link Aggregation | IEEE 802.3ad LACP (static trunk) Supports 12 trunks groups with 4 ports per trunk group |
Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol |
QoS | Traffic classification based, strict priority and WRR 8-Level priority for switching - Port Number - 802.1p priority - 802.1Q VLAN tag - DSCP/TOS field in IP packet |
IGMP Snooping | IPv4 IGMP Snooping (v1/v2/v3) IPv4 IGMP Querier mode support Up to 255 multicast groups |
MLD Snooping | IPv6 MLD Snooping (v1/v2) IPv6 MLD Querier mode support Up to 255 multicast groups |
Bandwidth Control | Per port bandwidth control Ingress: 10Kbps~3276Mbps Egress: 10Kbps~3276Mbps |
Security Functions | |
Access Control List | IP-based ACL/MAC-based ACL ACL based on: - MAC Address - IP Address - Ethertype - Protocol Type - VLAN ID - DSCP - 802.1p Priority Up to 256 entries |
Security | Port security IP source guard Dynamic ARP inspection Command line authority control based on user level |
AAA | RADIUS client TACACS+ client |
Network Access Control | IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication |
Management Functions | |
Basic Management Interfaces | Console; Telnet; Web Browser; SNMP v1, v2c |
Secure Management Interfaces | SSHv2, TLS v1.2, SNMP v3 |
System Management | Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote Syslog System log LLDP protocol NTP PLANET Smart Discovery Utility |
Event Management | Remote Syslog Local System log SMTP |
ONVIF | ONVIF device discovery ONVIF device monitoring Floor Map |
SNMP MIBs | RFC 1213 MIB-II RFC 2863 IF-MIB RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2737 Entity MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2618 RADIUS Client MIB RFC 3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB Power over Ethernet MIB |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ab 1000BASE-T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree protocol IEEE 802.1w Rapid Spanning Tree protocol IEEE 802.1s Multiple Spanning Tree protocol IEEE 802.1p Class of service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet PLUS RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 |
Environments | |
Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
