Коммутаторы, маршрутизаторы
IPv4/IPv6, 24-Port 10/100/1000T + 4-Port 100/1000X SFP L2/L4 SNMP Manageable Gigabit Ethernet Switch(supports ERPS Ring, CloudViewer app, MQTT and Cybersecurity feature)
IPv4/IPv6, 24-Port 10/100/1000T + 4-Port 100/1000X SFP L2/L4 SNMP Manageable Gigabit Ethernet Switch(supports ERPS Ring, CloudViewer app, MQTT and Cybersecurity feature)

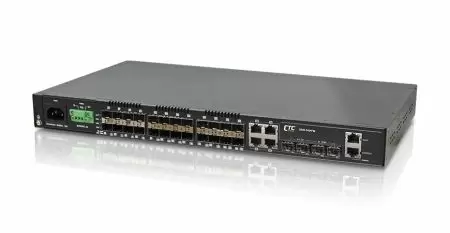

L2+/L4 24-Port 10G SFP+ + 2-Port 40G QSFP+ Stackable Managed Switch with 36-72V DC redundant power, Hardware Layer3 IPv4/IPv6 Static Routing
L2+/L4 24-Port 10G SFP+ + 2-Port 40G QSFP+ Stackable Managed Switch with 36-72V DC redundant power, Hardware Layer3 IPv4/IPv6 Static Routing
24-Port 10/100/1000T 802.3at PoE + 2-Port 1000SX SFP Gigabit Switch with smart color LCD (300W PoE Budget, Standard/VLAN/Extend mode, PoE Budget, bandwidth control, PD alive check setup over LCD )
24-Port 10/100/1000T 802.3at PoE + 2-Port 1000SX SFP Gigabit Switch with smart color LCD (300W PoE Budget, Standard/VLAN/Extend mode, PoE Budget, bandwidth control, PD alive check setup over LCD )
5-Port 10/100Mbps Fast Ethernet Switch, Metal
8-Port 10/100Mbps Fast Ethernet Switch, Metal
| Hardware Specifications | |
|---|---|
| Copper Ports | 24 10/100/1000BASE-T RJ45 copper ports |
| SFP Slots | 2 x 100/1000BASE-X SFP interface |
| Flash Memory | 16Mbytes |
| Reset Button | < 10 sec: System reboot > 10 sec: Factory default |
| ESD Protection | Contact ±6KV , Air ±8KV |
| Surge Protection | Differential mode ±2KV , Common mode ±4KV |
| Dimensions (W x D x H) | 440 x 207 x 44mm |
| Weight | 2049g |
| Power Consumption | 16.4 watts/55.9BTU |
| Power Requirements | AC 100~240V, 50/60Hz |
| Fan | -- |
| LED | System: PWR (Green) Ports: LNK/ACT (Green) |
| Switching Specifications | |
| Switch Architecture | Store-and-forward |
| Switch Fabric | 52Gbps/non-blocking |
| Switch Throughput | 38.68Mpps |
| Address Table | 8K MAC address table with auto-learning, auto-aging |
| Shared Data Buffer | 4.1MB |
| Jumbo Frame | 10KBytes |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Layer 2 Functions | |
| Port Configuration | EEE Green energy savings disable/enable Port disable/enable/reboot Flow control disable/enable Bandwidth control on each port Port loopback protection |
| Port Status | Display each port’s speed duplex mode, Display link status Display flow control status Display auto negotiation status Display Green energy saving status |
| Port Mirroring | In / Out / All Many-to-1 monitor |
| VLAN | 802.1Q tagged VLAN, up to 16 VLAN groups |
| Bandwidth Control | TX/RX/Both |
| Link Aggregation | static trunk Supports 8 groups with 8 ports per trunk group |
| QoS | 8 priority queues on all switch ports Supports strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification: IEEE 802.1p CoS/ToS IPv4 DSCP Port-based WRR |
| Multicast | IPv4 IGMP v1/v2 snooping Up to 256 |
| Security Functions | |
| Security | Port isolation DHCP Snooping |
| Switch Management Functions | |
| System Configuration | Telnet, Web browser |
| Management | Authentication for IPv4 Telnet user name and password Telnet Cable Diagnostics IP address or domain name Ping Test NTP (Network Time Protocol) PLANET Smart Discovery Utility PLANET NMS PLANET NMSViewerPro |
| Standard Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit 1000BASE-SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x flow control and back pressure IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
| Hardware Specifications | |
|---|---|
| Copper Ports | 24 10/100/1000BASE-T RJ45 copper ports |
| SFP Slots | 2 x 100/1000BASE-X SFP interface |
| Flash Memory | 16Mbytes |
| Reset Button | < 10 sec: System reboot > 10 sec: Factory default |
| ESD Protection | Contact ±6KV , Air ±8KV |
| Surge Protection | Differential mode ±2KV , Common mode ±4KV |
| Dimensions (W x D x H) | 440 x 207 x 44mm |
| Weight | 2049g |
| Power Consumption | 16.4 watts/55.9BTU |
| Power Requirements | AC 100~240V, 50/60Hz |
| Fan | -- |
| LED | System: PWR (Green) Ports: LNK/ACT (Green) |
| Switching Specifications | |
| Switch Architecture | Store-and-forward |
| Switch Fabric | 52Gbps/non-blocking |
| Switch Throughput | 38.68Mpps |
| Address Table | 8K MAC address table with auto-learning, auto-aging |
| Shared Data Buffer | 4.1MB |
| Jumbo Frame | 10KBytes |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Layer 2 Functions | |
| Port Configuration | EEE Green energy savings disable/enable Port disable/enable/reboot Flow control disable/enable Bandwidth control on each port Port loopback protection |
| Port Status | Display each port’s speed duplex mode, Display link status Display flow control status Display auto negotiation status Display Green energy saving status |
| Port Mirroring | In / Out / All Many-to-1 monitor |
| VLAN | 802.1Q tagged VLAN, up to 16 VLAN groups |
| Bandwidth Control | TX/RX/Both |
| Link Aggregation | static trunk Supports 8 groups with 8 ports per trunk group |
| QoS | 8 priority queues on all switch ports Supports strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification: IEEE 802.1p CoS/ToS IPv4 DSCP Port-based WRR |
| Multicast | IPv4 IGMP v1/v2 snooping Up to 256 |
| Security Functions | |
| Security | Port isolation DHCP Snooping |
| Switch Management Functions | |
| System Configuration | Telnet, Web browser |
| Management | Authentication for IPv4 Telnet user name and password Telnet Cable Diagnostics IP address or domain name Ping Test NTP (Network Time Protocol) PLANET Smart Discovery Utility PLANET NMS PLANET NMSViewerPro |
| Standard Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit 1000BASE-SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x flow control and back pressure IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
от 2452 грн
16-Port 10/100BASE-TX Fast Ethernet Switch (4 operation modes: Standard/VLAN/Flow Control/Extend )
16-Port 10/100BASE-TX Fast Ethernet Switch (4 operation modes: Standard/VLAN/Flow Control/Extend )
от 2822 грн
24-Port 10/100BASE-TX Fast Ethernet Switch (4 operation modes: Standard/VLAN/Flow Control/Extend )
24-Port 10/100BASE-TX Fast Ethernet Switch (4 operation modes: Standard/VLAN/Flow Control/Extend )
от 4234 грн
16-Port 10/100/1000Mbps Gigabit Ethernet Switch (4 operation modes: Standard/VLAN/Flow Control/Port Trunk via DIP switch, EEE power saving )
16-Port 10/100/1000Mbps Gigabit Ethernet Switch (4 operation modes: Standard/VLAN/Flow Control/Port Trunk via DIP switch, EEE power saving )
Популярные товары
от 1638 грн
SFP+ трансивер CWDM DFB 10 Гбит/с предназначен для передачи и приема оптических данных по одномодовому оптическому волокну на длину линии связи 20 км. Электрический интерфейс модуля CWDM SFP+ LR соответствует электрическим спецификациям SFI.
Широкий выбор коммутаторов и маршрутизаторов от ведущих мировых производителей, идеально подходящих для создания надежных интернет-сетей для бизнеса. Управляемые и неуправляемые, Fast Ethernet и Gigabit Ethernet коммутаторы уровня 2 и уровня 3 с различным количеством Ethernet портов и SFP или SFP + слотов и поддержкой PoE. Наши коммутаторы и маршрутизаторы отличаются высоким качеством, надежностью и удобством в монтаже. Выбирайте по техническим характеристикам и цене, используя удобные фильтры. Каждый товар сопровождается подробными техническими спецификациями и техническими паспортами описанием. Выбирайте лучшее сетевое оборудование у нас! Наши сетевые решения позволяют эффективно управлять вашей сетью, обеспечивая стабильную связь и высокую производительность. Независимо от того, нужно ли вам сетевое оборудование для малого офиса или крупного предприятия, у нас есть решения, которые соответствуют вашим потребностям.
