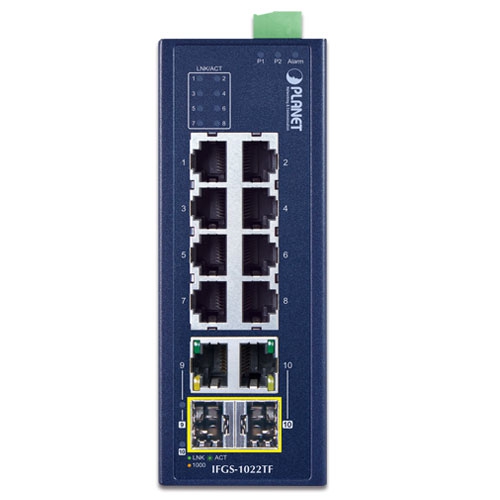

IFGS-1022TF - Industrial 8-Port 10/100TX + 2-Port Gigabit TP/SFP Combo Ethernet Switch
| Hardware Specifications | |
|---|---|
| Fast Ethernet Copper Ports | 8 x 10/100BASE-TX RJ45 auto-MDI/MDI-X ports |
| Gigabit Ethernet Copper Ports | 2 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (shared with Port-9 and Port-10) |
| SFP Slots | 2 x 1000BASE-SX/LX/BX SFP interfaces (shared with Port-9 and Port-10) |
| Enclosure | IP30 metal case |
| Installation | DIN-rail kit and wall-mount kit |
| Connector | Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 |
| Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
| Dimensions (W x D x H) | 50 x 87.8 x 135 mm |
| Weight | 534g |
| Power Requirements | Dual 9~48V DC 24V AC |
| Power Consumption | Max. 12.3 watts/42BTU |
| ESD Protection | 6KV DC |
| Switching Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 5.6Gbps (non-blocking) |
| Throughput (packet per second) | 4.16Mpps@ 64 bytes |
| Address Table | 16K entries, automatic source address learning and aging |
| Shared Data Buffer | 4Mbits |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 16K bytes |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000T IEEE 802.3z Gigabit SX/LX IEEE 802.3x flow control and back pressure IEEE 802.1p Class of Service IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment | |
| Operating Temperature | -40 ~ 75 degrees C |
| Storage Temperature | -40 ~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
