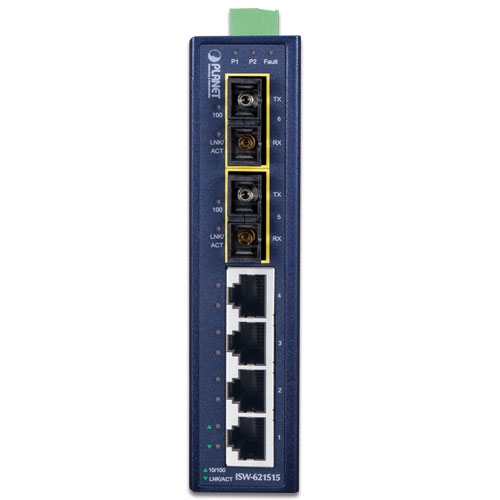

ISW-621 / ISW-621S15 - 4-Port 10/100Base-TX + 2-Port 100Base-FX Industrial Fast Ethernet Switch (-10~60 degrees C operating temperature)
| Hardware Specifications | |
|---|---|
| Copper | Ports 4 x 10/100Base-TX, auto negotiation, auto-MDI/MDI-X Cable 10Base-T : 2-pair UTP Cat. 3, 4, 5cable (100meters, max.) 100Base-TX : 2-pair UTP Cat. 5cable (100meters, max.) |
| Optical | Port 2 x 100Base-FX Cable ISW-621: 50/125μm fiber ISW-621S15: 9/125μm fiber Mode ISW-621: Multi-mode ISW-621S15: Single-mode Distance ISW-621: 2km ISW-621S15: 15km Frequency ISW-621: 1310nm ISW-621S15: 1310nm Launch Power ISW-621: Max. -14dBm, Min. -19dBm ISW-621S15: Max. -7dBm, Min. -20dBm Receive Sensitivity ISW-621: -34.5dBm ISW-621S15: -28dBm Max. Input Power ISW-621: -14dBm ISW-621S15: -8dBm |
| Dimensions (W x D x H) | 135 x 97 x 32 mm |
| Weight | 442g |
| Power Requirements | 12~48 VDC, Redundant power with polarity reverse protection function |
| Power Consumption / Dissipation | Max. 11.6 watts / 40BTU |
| Installation | DIN rail kit / wall mount ear |
| Alarm | Provides one relay output for power fail Alarm relay current carry ability: 1A @ DC 24V |
| Switch Specification | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Buffer | 1Mbit |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 1.2Gbps |
| Throughput (Packet Per Second) | 0.89Mpps @ 64Bytes |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet, 10Base-T IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX IEEE 802.3x full-duplex flow control |
| Temperature | Operating: -10~60 degrees C Storage: -40~85 degrees C |
| Humidity Operating | Operating: 5~90%, Storage: 5~90% (non-condensing) |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Safety | UL, cUL |
| Stability Testing | IEC60068-2-32(Free fall), IEC60068-2-27(Shock), IEC60068-2-6(Vibration) |
