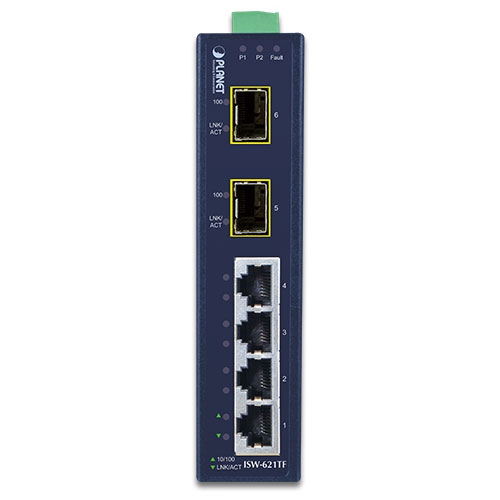

ISW-621TF - 4-Port 10/100Base-TX + 2-Port 100Base-FX SFP
| Hardware Specifications | |
|---|---|
| Copper Interface | Ports ‧4 x 10/100Base-TX, auto negotiation, auto-MDI/MDI-X Cable ‧10Base-T: 2-pair UTP Cat. 3, 4, 5 cable (100meters, max.) ‧100Base-TX: 2-pair UTP Cat. 5, 5e, 6 cable (100meters, max.) |
| Optical Interface | Port / Type ‧2 x 100Base-FX / LC interfaces Cable ‧Multi-mode: 50/125μm / 62.5/125μm fiber ‧Single-mode: 9/125μm fiber |
| Dimensions (W x D x H) | 135 x 97 x 32 mm |
| Weight | 442g |
| Power Requirements | 12~48V DC, Redundant power with polarity reverse protection |
| Power Consumption / Dissipation | Max. 16 watts / 54 BTU |
| Installation | DIN rail kit / wall mount ear |
| Alarm | Provides one relay output for power failure Alarm relay current carry ability: 1A @ DC 24V |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Buffer | 1Mbit |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 1.2Gbps |
| Throughput (Packet Per Second) | 0.89Mpps @ 64Bytes |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet, 10Base-T IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX IEEE 802.3x Flow Control |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~85 degrees C |
| Humidity | Operating: 5~90% Storage: 5~90% (non-condensing) |
