Головна
Індустріальне обладнання
Промислові комутатори, маршрутизатори

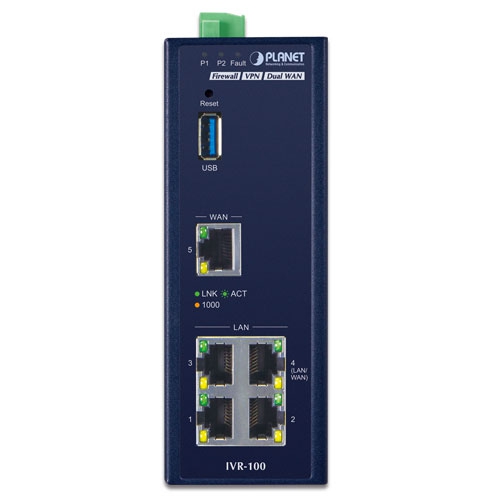

IVR-100 - Industrial 5-Port 10/100/1000T VPN Security Gateway

IVR-100 - Industrial 5-Port 10/100/1000T VPN Security Gateway

Акція до 10.12 -20% на купівлю даної модифікації від 50 шт. Знижка -20% в комплекті з товарами

Hardware
Ethernet	5 10/100/1000BASE-T RJ45 Ethernet ports including 3 LAN ports 1WAN port 1 LAN/WAN port
USB Port	1 USB 3.0 port for system configuration backup and firmware upgrade
Reset Button	< 5 sec: System reboot > 5 sec: Factory default
Enclosure	IP30 metal case
LED Indicators	Power1/Power2 (Green) Fault (Red)
Installation	DIN-rail, wall-mount or side wall-mount design
Connector	Removable 6-pin terminal block Pin 1/2 for Power 1 Pin 3/4 for power fault alarm Pin 5/6 for Power 2
Alarm	One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC
Power Requirements	9-48V DC, 1A max.
Power Consumption	9W max.
Weight	0.53kg
Dimensions (W x D x H)	135 x 87.8 x 50 mm
ESD Protection	6KV DC
Software
Management	Web browser
Operation Mode	Routing mode
Routing Protocol	Static route: 32 Dynamic route (RIPv1/v2): 4096
NAT Throughput	Max. 900Mbps
Firewall Security	Stateful packet inspection (SPI) Blocks DoS/DDoS attack
Outbound Load Balancing	Supported algorithms: Weight
Protocol	IPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, SNMP(v1/v2C/v3), PPPoE, SNMP, QoS, VLAN, IGMP Proxy
Content Filtering	MAC filtering IP filtering Web filtering
Log	System operation log Event message logging to remote syslog server
Others	Outbound load balancing Failover for dual-WAN Port forwarding DMZ Cybersecurity Dashboard Setup wizard Auto reboot PLANET Smart Discovery utility/UNI-NMS supported
VPN
VPN Function	IPSec (Host to Host)/GRE/PPTP server/L2TP/SSL (Open VPN)
VPN Tunnels	Max. 60
VPN Throughput	Max. 100Mbps
VPN concurrent users	Max. 60
Encryption Methods	DES, 3DES, AES or AES-128/192/256 encrypting
Authentication Methods	MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm
Standards Conformance
Regulatory Compliance	CE, FCC
Stability Testing	IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)
Standards Compliance	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3ab Gigabit 1000T IEEE 802.1Q VLAN tagging RFC 768 UDP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP
Environment Specifications
Operating	Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Standard Accessories
Packet Contents	IVR-100 x 1 Quick Installation Guide x 1 Wall-mount Kit x 1 Dust Cap x 5
