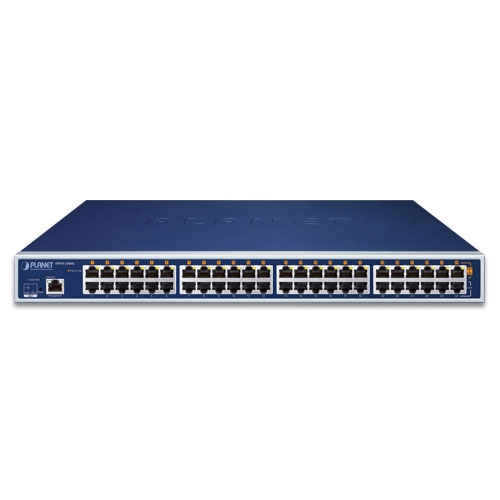

HPOE-2400G - 24-Port Gigabit IEEE 802.3at PoE+ Managed Injector Hub (720 watts)
| Hardware | |
|---|---|
| Hardware Version | 6 |
| Interface | “Data” Input Ports：24 x RJ45 “Data + Power” Output Ports：24 x RJ45 Management Port：1 x RJ45; 10/100/1000BASE-T, auto-negotiation, auto-MDI/MDIX |
| Data Rate | 10/100/1000Mbps |
| Power Requirements | 100-240V AC, 50/60 Hz, 12A |
| Power Consumption | 719 watts max./2453 BTU |
| Ventilation | Smart Fan x 2 |
| Dimensions (W x D x H) | 440 x 300 x 44mm |
| Weight | 4.3kg |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| LED | System: SYS PWR x 1 (Green) PoE Fail x 1 (Red) Fan1 Fail x 1 (Red) Fan2 Fail x 1 (Red) Per PoE Port: PoE-in-Use x 1 (Amber) Management port x 1: LNK/ACT (Green) |
| Network Cable | 10BASE-T: 4-pair UTP Cat5 up to 100m (328ft) 100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft) 1000BASE-T: 4-pair UTP Cat5e, 6, up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m) |
| Power over Ethernet | |
| PoE Power Supply Type | Mid-span |
| PoE Power Output | Per port DC 54V 30.8/15.4 watts |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Power Budget | 720 watts@0~39 degrees C 670 watts@40~49 degrees C 620 watts@50 degrees C Auto power budget control by over temperature protection function |
| Number of 802.3af PDs (Class 0, 1, 2, 3) can be powered | 24 |
| Number of 802.3at PDs (Class 1, 2, 3) can be powered | 24 |
| Number of 802.3at PDs (Class 0, 4) can be powered | 24 |
| Security | |
| Firewall | SPI Firewall Protection |
| Filtering | MAC Filtering |
| Certificates | System CA Certificate for HTTPS |
| Management | |
| Management Interface | Web, PLANET Smart Discovery Lite |
| Secure Management Interface | TLSv1.2, TLSv1.3 |
| PoE Management | Power limit by consumption and classification PoE function enable/disable Per port PoE function enable/disable Per port PoE power schedule Power feeding priority PD alive check PD classification detection Current per port usage and status Total power consumption |
| Management Feature | IPv4 and IPv6 dual stack management Web interface for remote management PLANET DDNS and Easy DDNS Supports Network Time Protocol (NTP) System Maintenance Firmware upload via HTTP Configuration upload/download via HTTP Reboot button for system reboot Reset button for system reset to factory default PLANET Smart Discovery utility PLANET NMS system and CloudViewer for deployment management SNMP v1, v2c and v3 for system status monitoring SNMP trap for alarm notification of events System event log/remote syslog Scheduled System Power Rebooting Network Diagnostic ICMPv6/ICMPv4 Remote Ping Trace Route |
| Standards Conformance | |
| Regulatory Compliance | FCC, Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3af Power over Ethernet RFC 768: UDP RFC 791: IP RFC 2068 HTTP RFC 1157: SNMP v1 RFC 1902: SNMP v2c RFC 2273: SNMPv3 RFC 5424: Syslog |
| Environments | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
