POE-172S - Single Port 10/100/1000Mbps 95W Ultra PoE Splitter (12V/19V/24V)
| Hardware Specifications | |
|---|---|

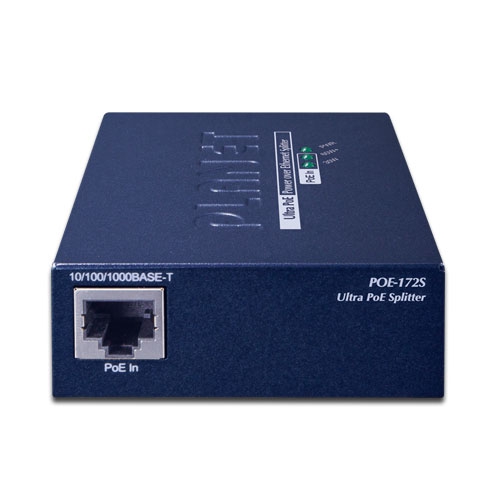

| Interface | Ethernet 1 x 10/100/1000BASE-T RJ45, Ethernet data output port PoE in 1 x 10/100/1000BASE-T RJ45, PoE power input port |

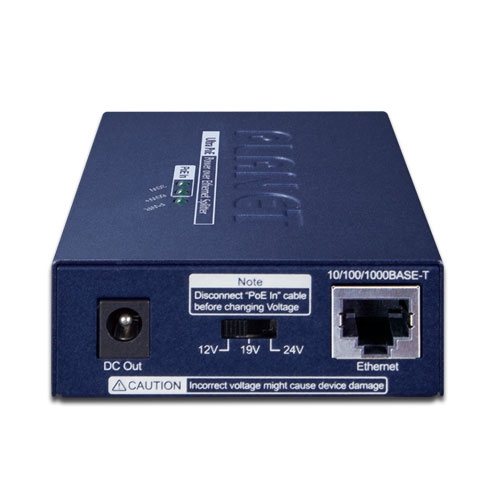

| DIP Switch | 12V/19V/24V DC output |
| Power Socket | DC receptacle 2.5mm |
| LED Indicator | System: Power x 1 (Green) PoE-in-use x 2 (Green) |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 94 x 70.3 x 26.2 mm |
| Weight | 300g |
| Installation | Desktop/wall mountable |
| Enclosure | Metal case |
| Power Requirements | 50~56V DC PoE |
| Unit Output Current (at 56VDC Input) | 75-watt PoE input
|
| Power Consumption | Ethernet full loading without DC output: 3.7 watts Full loading with maximum 12V DC, 5A output: 75 watts |
| Network Cable | Ultra PoE (60W+) 4-pair UTP Cat. 5, 5e, 6, up to 100m (328ft) 802.3af/at PoE (15W/30W) 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) |
| Power over Ethernet | |
| PoE Standard | 802.3bt Type 3/Type 4 Power over Ethernet 4-pair 802.3at PoE+ and Cisco UPOE compliant with voltage within 50V-56V DC |
| Power Output | DC 12V/19V/24V by DIP switch control |
| PoE Power Supply Type | End-span + Mid-span End-span Mid-span |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3af Power over Ethernet |
| Regulatory Compliance | FCC, CE |
| Environment | |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 90%, non-condensing |
| Storage Humidity | 5 ~ 90%, non-condensing |
| Standard Accessories | |
| Package Contents | One 15cm UTP straight network cable Two external female plug cables:
|
