Питание и компоненты PoE
Single-Port 10Gbps 802.3bt PoE++ Injector (95 Watts, 802.3bt Type-4, Legacy, force mode support, PoE Usage LED, 10/100/1G/2.5G/5G/10Gbps Data rate) -w/external 54V 130W AC power adapter included
Single-Port 10Gbps 802.3bt PoE++ Injector (95 Watts, 802.3bt Type-4, Legacy, force mode support, PoE Usage LED, 10/100/1G/2.5G/5G/10Gbps Data rate) -w/external 54V 130W AC power adapter included
| Hardware Specifications | |
|---|---|
| Interface | Input Port ■ 1 x RJ-45 STP ■ PoE (Data + Power) In Output Port ■ 1 x RJ-45 STP ■ Data Out DC Socket ■ DC Out DIP-Switch ■ 12V DC/19V DC/24V DC output voltage |
| LED Indicator | System: Power x 1 (Green) |
| Network Cable | Ultra PoE (60W): 10/100/1000Base-T: 4-Pair UTP Cat. 5e, 6 up to 100m (328ft) 802.3af / at PoE (15W / 30W): 10/100/1000Base-T: 2-Pair UTP Cat. 3, 5, 5e, 6 up to 100m (328ft) |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 95 x 70 x 26 mm |
| Weight | 300g |
| Power Requirements | 52 ~ 56V DC |
| Power Consumption | 50 watts (maximum) |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Humidity | 5 ~ 95% (Non-condensing) |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus |
| Power Output | DC 12V/19V/24V by DIP switch control |
| DC Plug connectors (Diameter) | 2 external female plug cables: ■ 5.5/2.5mm to 5.5/2.5mm ■ 5.5/2.5mm to 5.5/2.1mm |
| PoE Power Supply Type | End-Span + Mid-Span |
| Power Pin Assignment | Pair 1: 1/2(-), 3/6(+) Pair 2: 4/5(+), 7/8(-) |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3at High Power over Ethernet IEEE 802.3af Power over Ethernet |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Hardware Specifications | |
|---|---|
| Interface | Input Port ■ 1 x RJ-45 STP ■ PoE (Data + Power) In Output Port ■ 1 x RJ-45 STP ■ Data Out DC Socket ■ DC Out DIP-Switch ■ 12V DC/19V DC/24V DC output voltage |
| LED Indicator | System: Power x 1 (Green) |
| Network Cable | Ultra PoE (60W): 10/100/1000Base-T: 4-Pair UTP Cat. 5e, 6 up to 100m (328ft) 802.3af / at PoE (15W / 30W): 10/100/1000Base-T: 2-Pair UTP Cat. 3, 5, 5e, 6 up to 100m (328ft) |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 95 x 70 x 26 mm |
| Weight | 300g |
| Power Requirements | 52 ~ 56V DC |
| Power Consumption | 50 watts (maximum) |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Humidity | 5 ~ 95% (Non-condensing) |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus |
| Power Output | DC 12V/19V/24V by DIP switch control |
| DC Plug connectors (Diameter) | 2 external female plug cables: ■ 5.5/2.5mm to 5.5/2.5mm ■ 5.5/2.5mm to 5.5/2.1mm |
| PoE Power Supply Type | End-Span + Mid-Span |
| Power Pin Assignment | Pair 1: 1/2(-), 3/6(+) Pair 2: 4/5(+), 7/8(-) |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3at High Power over Ethernet IEEE 802.3af Power over Ethernet |
| Regulation Compliance | FCC Part 15 Class A, CE |
Single Port 10/100/1000Mbps 95W Ultra PoE Splitter (12V/19V/24V)
Single Port 10/100/1000Mbps 95W Ultra PoE Splitter (12V/19V/24V)

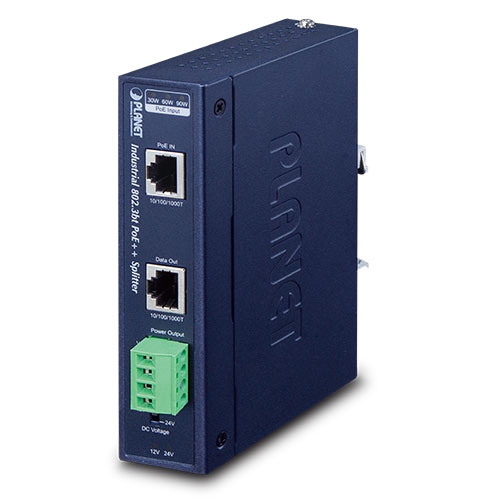

Single-Port 10/100/1000T 802.3bt PoE++ Splitter (12V/19/24V, 802.3bt type 4 PD, PoH compatible)
Single-Port 10/100/1000T 802.3bt PoE++ Splitter (12V/19/24V, 802.3bt type 4 PD, PoH compatible)
1-Port 802.3bt to 1-Port 802.3bt Gigabit PoE++ Extender(95 Watts 802.3bt PoE++ Input, BT/UPOE mode output support via DIP switch, compact size and wall-mountable design)
1-Port 802.3bt to 1-Port 802.3bt Gigabit PoE++ Extender(95 Watts 802.3bt PoE++ Input, BT/UPOE mode output support via DIP switch, compact size and wall-mountable design)
1-Port 95W 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender
1-Port 95W 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender
IEEE802.3at High Power PoE Injector - 30W
IEEE802.3at High Power PoE Injector - 30W
16-Port Gigabit 95W 802.3bt PoE++ Managed Injector Hub (600W PoE Budget, IPv4/IPv6 HTTP/HTTPs Management, SNMPv3, CloudViewer app, MQTT and cybersecurity)
16-Port Gigabit 95W 802.3bt PoE++ Managed Injector Hub (600W PoE Budget, IPv4/IPv6 HTTP/HTTPs Management, SNMPv3, CloudViewer app, MQTT and cybersecurity)

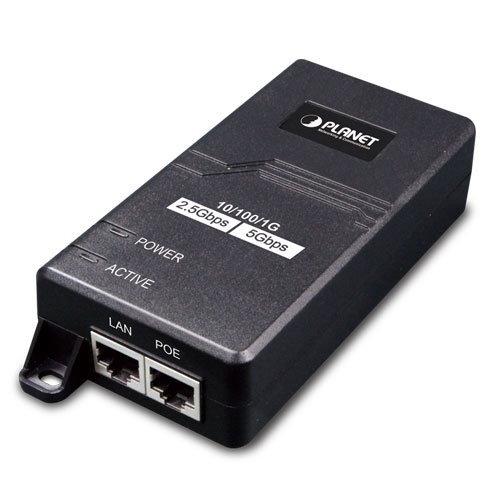

Single-Port Multigigabit 802.3at PoE+ Injector - 30W (All-in-one Pack, 10M/100M/1G/2.5G/5G speed)
Single-Port Multigigabit 802.3at PoE+ Injector - 30W (All-in-one Pack, 10M/100M/1G/2.5G/5G speed)
