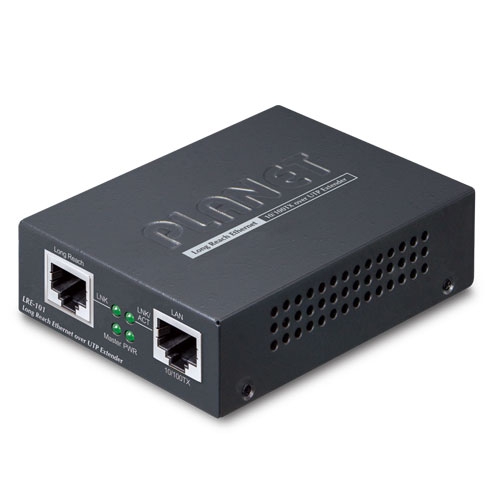

LRE-101 - 1-Port 10/100TX over UTP Long Reach Ethernet Extender
| Hardware Specifications | |||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LAN Ethernet interface | 1 10/100BASE-TX RJ45 Copper port, auto-negotiation / auto-MDI/MDI-X Cabling：Cat5e UTP or above Maximum Distance：100 meters Maximum Frame Size：1522 bytes |
||||||||||||||||||||||||
| Long Reach Interface | 1 RJ45 female Ethernet over UTP Cabling： Cat5e UTP or above Telephone wire (RJ11) Maximum Distance： Max.800m with data transmission (RJ45) Max.1200m with data transmission (RJ11) Long Reach Ethernet Standard：IEEE 1901 Modulation Type：Wavelet-OFDM Security：128-bit AES encryption Frequency Band：2~28MHz Performance*
|
||||||||||||||||||||||||

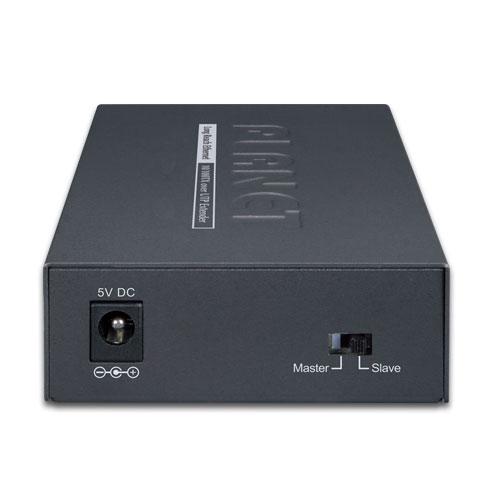

| Functionality | DIP Switch：Select Master or Slave mode | ||||||||||||||||||||||||
| Dimensions (W x D x H) | 97 x 70.3 x 26 mm | ||||||||||||||||||||||||
| Weight | 189g | ||||||||||||||||||||||||
| Housing | Metal | ||||||||||||||||||||||||
| Power Requirement | 5V DC, 2A external power | ||||||||||||||||||||||||

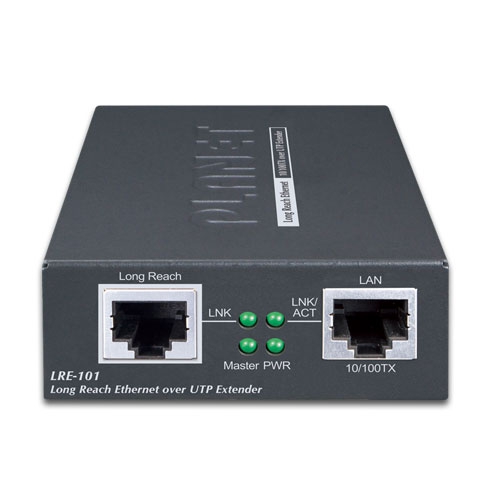

| LED Indicators | Power: Green LAN : Green, 10/100Mbps LNK/ACT Long Reach: Green, LNK Master: Green |
||||||||||||||||||||||||
| Standards Conformance | |||||||||||||||||||||||||
| Standards Compliance | IEEE 802.3/ 802.3u Ethernet standard compliant IEEE 802.3x Full-duplex flow control IEEE 802.1q Tag VLAN Transparent, Multicast pass-through |
||||||||||||||||||||||||
| Regulatory Compliance | FCC Part 15 Class A, CE | ||||||||||||||||||||||||
| Environment | |||||||||||||||||||||||||
| Temperature | Operating: 0~50 degrees C Storage: -10~70 degrees C |
||||||||||||||||||||||||
| Humidity | Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing) |
||||||||||||||||||||||||
